Premier-Lock™ (produced in CA)

The Premier0lock™ Standing Seam has the anti-capillary dry lock seam. It’s designed with softer, less industrial lines to provide a more architecturally pleasing appearance.

Code Compliance UL Evaluation Report UL ER25913-01

Features & Benefits

Standard width for Premier-Lock™ 100: 15.75″
Standard width for Premier-Lock™ 150: 14.75″
24 and 22 gauge Tru-Gauge™
Factory-notched panels available
Anti-Capillary dry lock seam
Pre-slotted fastener flange: allows expansion/contraction of panel
Premier-Lock 100 — 1″ rib height
Premier-Lock 150 — 1-1/2″ rib height
Concealed fastener system
3:12 minimum pitch recommended (for lower pitches please inquire)
Standard panel lengths 2′ to 35′ (for longer panels, please inquire)

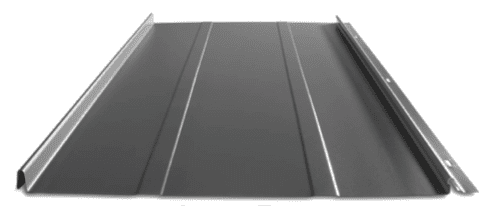

Panel options: Striations, Accent Ribs and Flat Pan
Manufactured in Sacramento CA & Riverside CA

Material Specifications

24 and 22 Tru-Gauge™ Kynar 500® Painted Steel
.032″ Kynar 500® Painted Aluminum
24 Tru-Gauge™ G-90 Galvanized or AZ-50
24 and 22 Tru-Gauge™ bare Zincalume® Plu, AZ-55 (no finish warranty — 25 yr. perforation warranty)
G-90 Galvanized or AZ-50
.040″ Kynar 500® Painted Aluminum (please inquire)
25 Tru-Gauge™ Bonderized
22 Rusteel Plus™ (A606)
16 and 20 ounce Real Copper

Testing

UL Construction No. 589
UL 580 Class 90 – Wind Uplift rated
UL 790 Class A (ASTM E108) – Fire rated
UL 2218 Class 4 – Impact (hail) rated
ASTM A653/A924 – G90 Galvanized
ASTM A792 – Zincalume/Galvalume AZ-50/55
ASTM B209 – Aluminum substrate(Premier-Lock™ 100 carries it UL Classification under the Easy-Lock™ profile designation)

Finishes

21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
Vintage® has a color range that can vary from batch-to-batch and have directional variations
- For more information: click here
Kynar 500® Paint System-the ultimate in exterior durability and color retention
“Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
40-year residential paint warranty
20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
