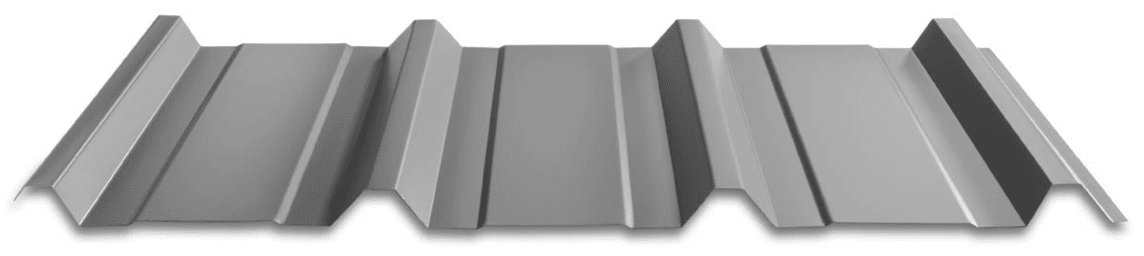

Marion “R” Panel™
Features & Benefits
- 26, 24 and 22 Tru-Gauge™ and .032″ Aluminum
- 1:12 minimum pitch recommended when installed with butyl sealant
- Custom lengths 1′ to 45′ (for longer length panels, please inquire)
- Long length flashings available up to 20’11”
- Standard trim, custom trim and accessory packages available
- Color matched neoprene washered screws
- Roof and vertical or horizontal wall application
- Perforated options available (please inquire)
- Fiberglass & polycarbonate panels available to match profile
- Manufactured in Salem OR and Riverside CA
- OverEZee™ retro-fit systems available
Material Specifications
- 26 gauge ArmorTech™ Painted Steel
- 24 & 22 Tru-Gauge™ Kynar 500® Painted Steel
- .032″ Kynar 500® Painted Aluminum
- 24 Tru-Gauge™ G-90 Galvanized or AZ-50
- 24 & 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 (no finish warranty – 25 year perforation warranty)
- G-90 Galvanized or AZ-50
- .040″ Kynar 500® Painted Aluminum (please inquire)
- 24 Tru-Gauge™ Bonderized
- 22 gauge Rusteel Plus™ (A606)
(No finish warranty – no perforation warranty)
- Kynar 500® and substrate testing data available
Testing
- UL 790 Class A (ASTM E108) – Fire rated
- UL 2218 Class 4 – Impact (hail) rated
- UL 580 Class 90 – Wind Uplift rated
- ASTM E1680 – Air infiltration (roof)
- ASTM E1646 – Water infiltration (roof)
- ASTM E1592 – Negative structural uniform static air pressure
- ASTM E330 – Positive structural uniform static air pressure
- ASTM E331 – Water infiltration (wall)
- ASTM E283 – Air infiltration (wall)
- ASTM A653/A924 – G90 Galvanized
- ASTM A792 – Zincalume/Galvalume AZ-50/55
Finishes
- 21 Standard Kynar® Colors, 5 metallic, and 3 specialized colors
- Vintage® has a color range that can vary from batch-to-batch and have directional variations
- Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
- Kynar 500® paint system – the ultimate in exterior durability and color retention
- “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
- 20 and 30 year commercial paint warranty; (contact TMP for warranty specifications
- 21 Standard ArmorTech™ colors, Zincalume® Plus and Galvanized
- ArmorTech™ Paint System – excellent in exterior durability
- Superior quality, two coat SMP resin system at 1.1 mil. thickness
- 40-year residential paint warranty
- fading
- chalking
- chipping
- cracking
- peeling
