BR-36

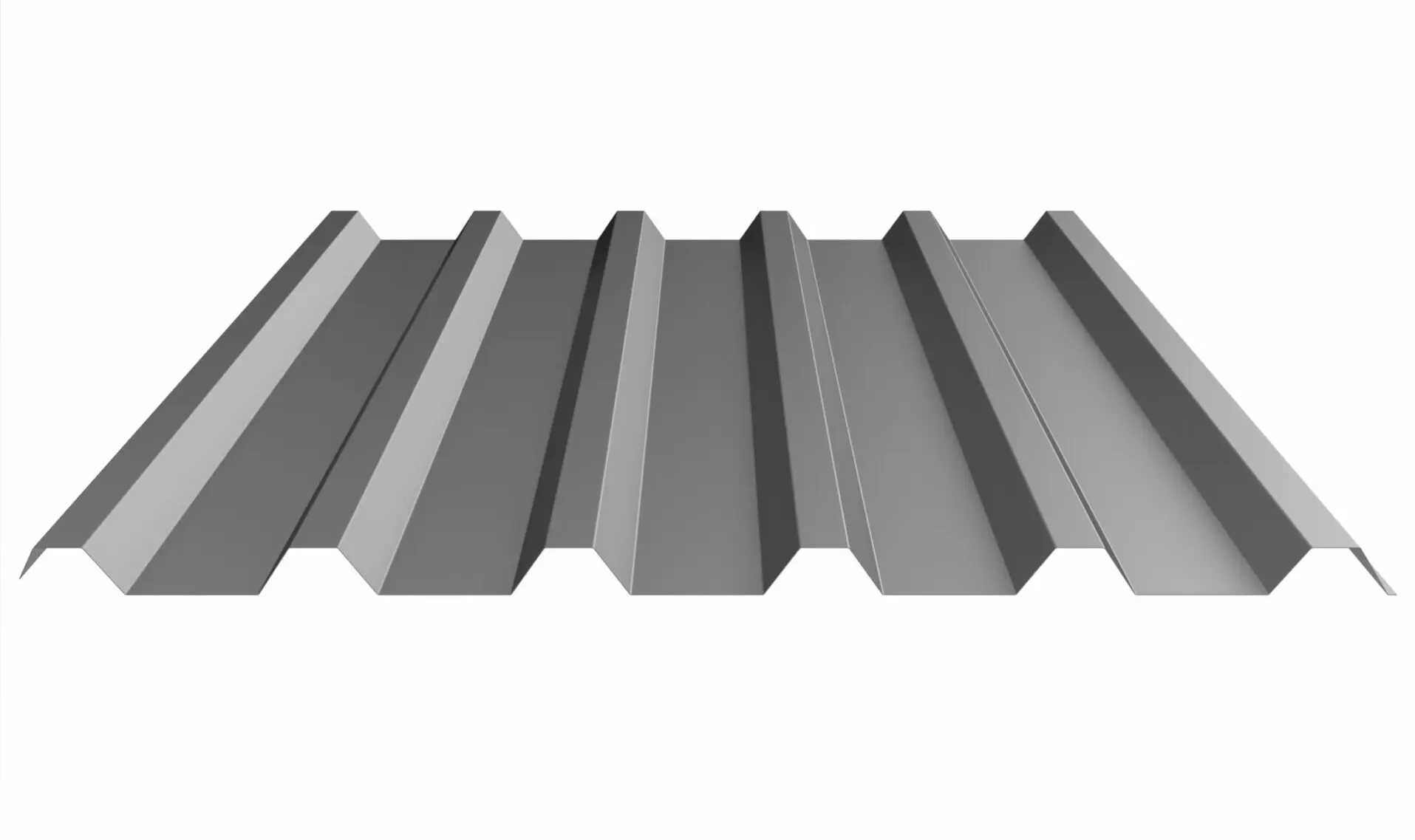

BR-36 is through-fastened roof & wall metal panel with full 36″ net coverage and is ideal for commercial, industrial, and architectural roof and wall applications.

ICC-ESR #5046 with CBC-CRC Supplement

ICC-ESR #5045 with CBC-CRC Supplement

UL Evaluation Report UL ER25913-01

Features & Benefits

24 and 22 Tru-Gauge™ and .032″ and .040″ Aluminum
Custom 20 & 18 Tru-Gauge™ and .040″ Aluminum (please inquire)
1:12 minimum pitch recommended when installed with butyl sealant
Custom lengths 3′ to 20’10” (for longer length panels, please inquire)
Long length flashings available up to 20’11”
Standard trim, custom trim and accessory packages available
Color matched neoprene washered screws
Roof and vertical or horizontal wall application
Perforated options available (please inquire)
Structural panel that will span up to 5′
Manufactured in Salem OR and Riverside CA
OverEZee™ retro-fit systems available

Material Specifications

24 Tru-Gauge™ Kynar 500® Painted Steel
22 Tru-Gauge™ Kynar 500® Painted Steel
.032″ Kynar 500® Painted Aluminum
24 Tru-Gauge™ G-90 Galvanized or AZ-50
24 & 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 (no finish warranty – 25 year perforation warranty)
G-90 Galvanized or AZ-50
.040″ Kynar 500® Painted Aluminum (please inquire)
24 Tru-Gauge™ Bonderized
22 gauge Rusteel Plus™ (A606)
(no finish warranty — no perforation warranty)

Testing

UL 580 Class 90 – Wind uplift
UL 790 Class A (ASTM E108) – Fire rated
UL 2218 Class 4 – Impact (hail) rated
ASTM E1680 – Air infiltration (roof)
ASTM E1646 – Water infiltration (roof)
ASTM E1592 – Negative structural uniform static air pressure
ASTM E330 – Positive structural uniform static air pressure
ASTM E331 – Water infiltration (wall)
ASTM E283 – Air infiltration (wall)
ASTM A653/A924 – G90 Galvanized
ASTM A792 – Zincalume/Galvalume AZ-50/55
ASTM B209 – Aluminum substrate

Finishes

21 Standard Colors, 2 Metallic Colors and 3 Specialized Colors
Vintage® has a color range that can vary from batch-to-batch and have directional variations
- For more information: click here
Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
- For more information: click here
Kynar 500® Paint System – the ultimate in exterior durability and color retention
“Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
40-year residential paint warranty
20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
