StreamLine™

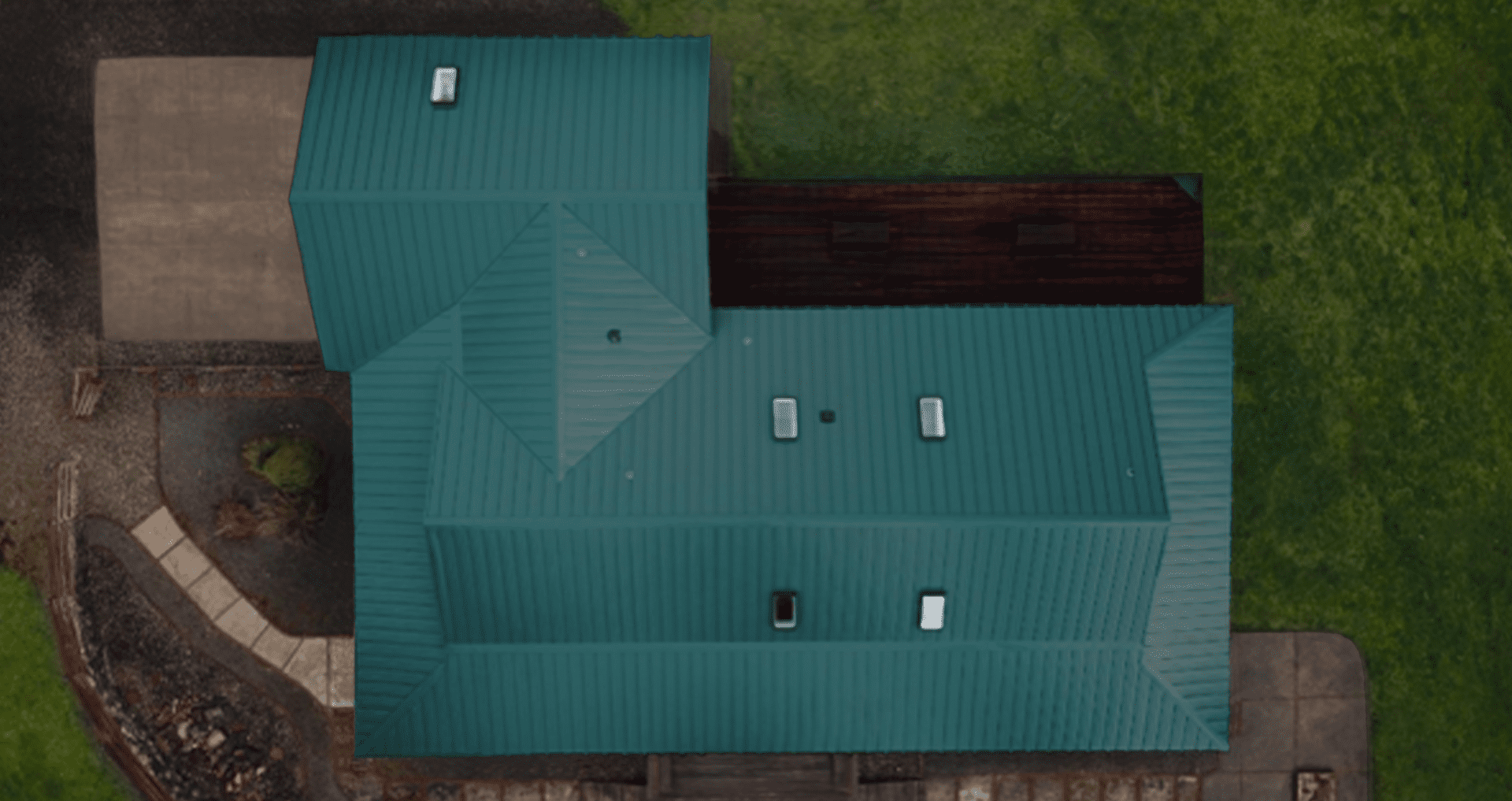

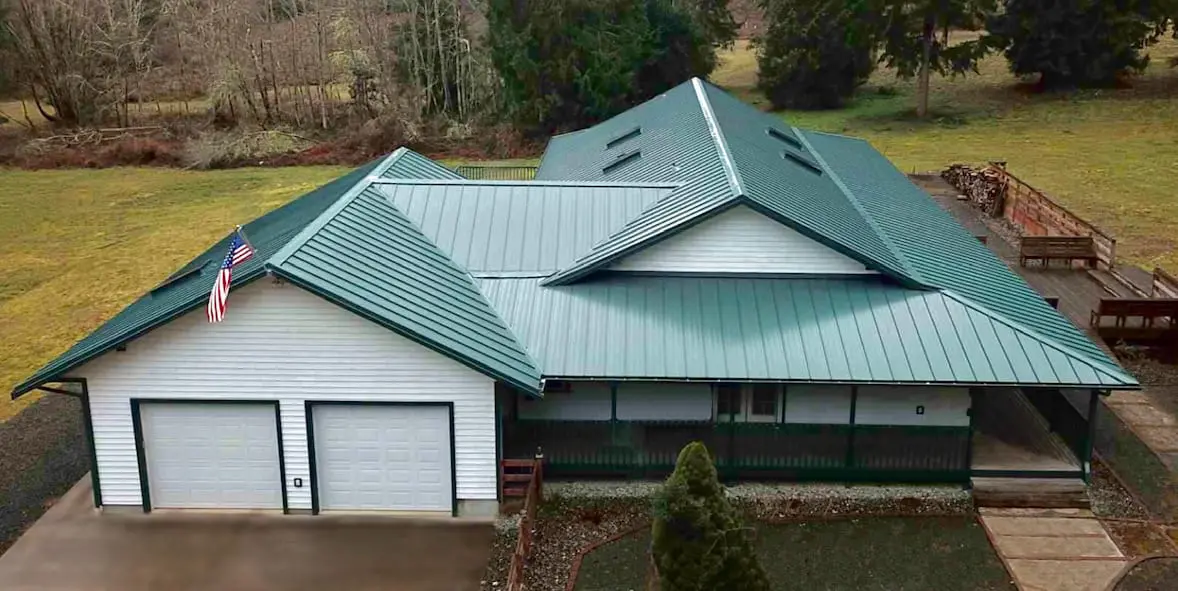

StreamLine™ Standing Seam is the metal roofing panel with a patented no-siphon dry lock seam, with a unique reversing feature to allow installation of panels from both directions – starting at any location. The panel is designed with softer, less industrial lines to provide a more architecturally pleasing appearance.

Code Compliance UL Evaluation Report UL ER25913-01

Code Compliance UL Evaluation UL Online Certification Directory

Features & Benefits

16″ coverage
26 gauge Tru-Gauge™ ArmorTech™ Painted Steel

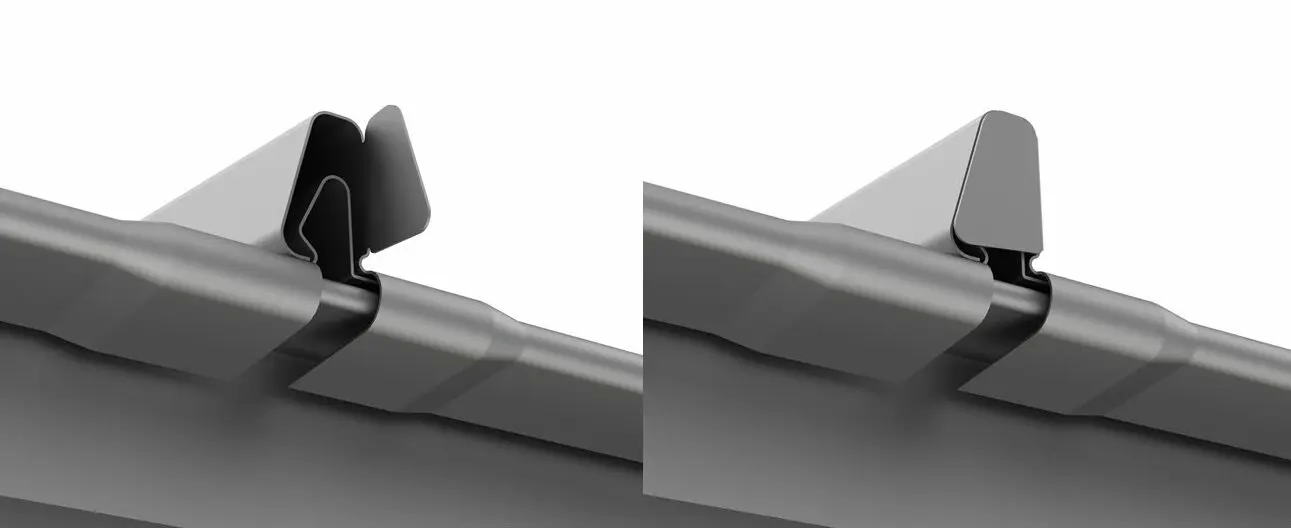

Factory-notched and tabbed panels available
Vertical interlocking application: allows installation from both directions starting at any location
Patented no-siphon lock seam
1″ vertical rib with ⅜” flat top for ease of flashing attachment
Concealed fasteners: fasteners cannot leak
Pre-slotted fastener flange: allows expansion/contraction of panel(high wind clips available for panel length over 35′)
3:12 minimum pitch recommended
(for lower pitches please inquire)
Standard panel lengths 4′ to 35′ – not notched
Standard panel lengths 1′ to 35′ – notched and tabbed
(for longer lengths, please inquire)

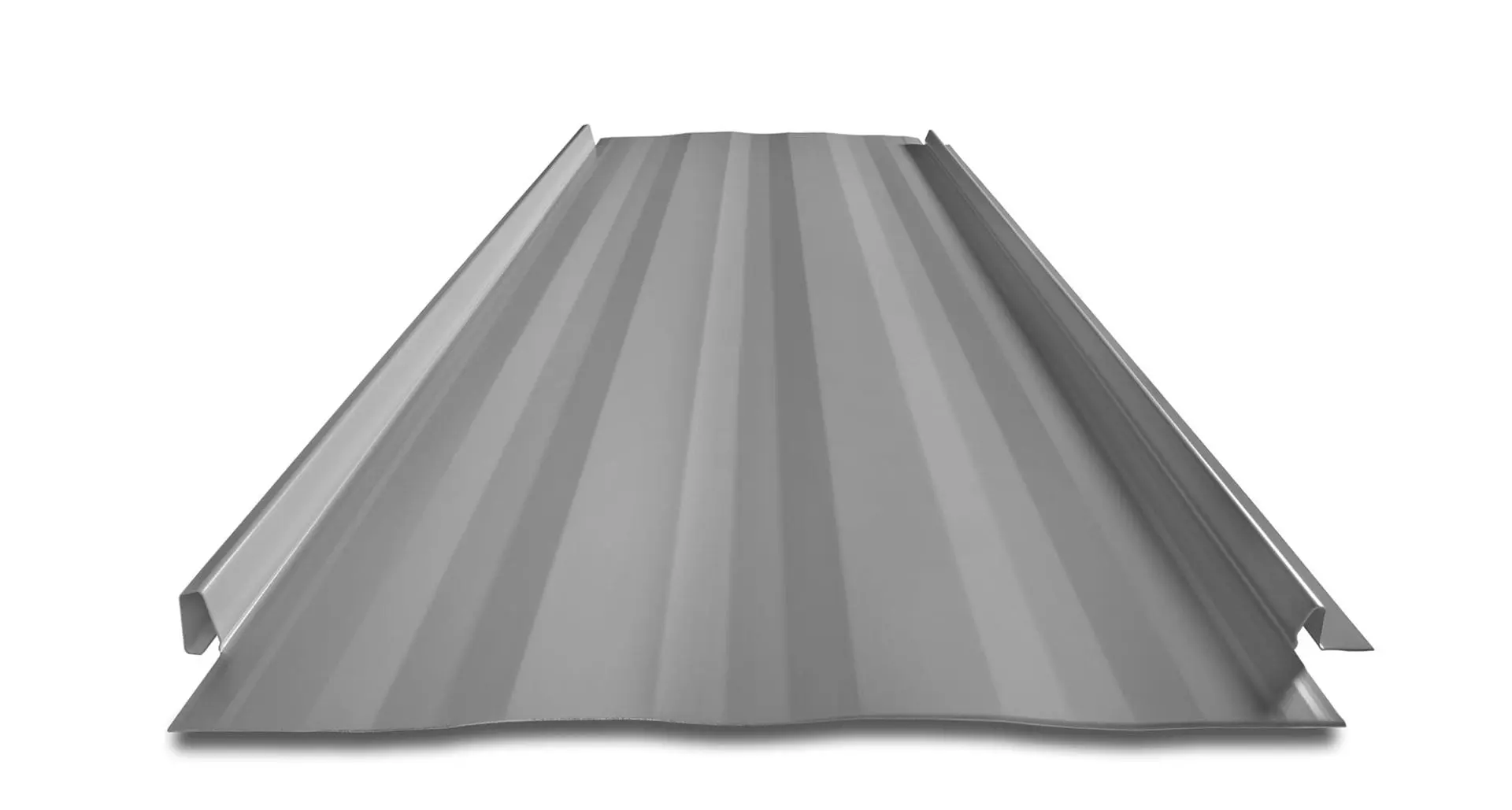

Panel options: Striations and Accent Ribs

Material Specifications

26 gauge ArmorTech™ SMP Painted Steel G-90 Galvanized or Zincalume® AZ-50
26 gauge bare Zincalume® Plus AZ-55 (No finish warranty – 25 year perforation warranty)
26 gauge bare G-90 Galvanized (No finish warranty – no perforation warranty)

Testing

UL Construction No. 529
UL 580 Class 90 – Wind Uplift
UL 790 Class A (ASTM E108) – Fire rated
UL 2218 Class 4 Impact (hail) rated (StreamLine™ carries its UL Classifications under the Easy-Lock™ profile designation)
ASTM A653/A924 – G90 Galvanized
ASTM A792 – Zincalume/Galvalume AZ-50/55
ASTM B209 – Aluminum Substrate

Finishes

18 Standard Colors, Zincalume® Plus, and G-90 Galvanized
ArmorTech™ Paint System – excellent in exterior durability and color retention
“Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
Superior quality, two coat SMP resin system at 1 mil. thickness
40-year residential paint warranty
- fading
- chalking
- chipping
- cracking
- peeling
