T-3™

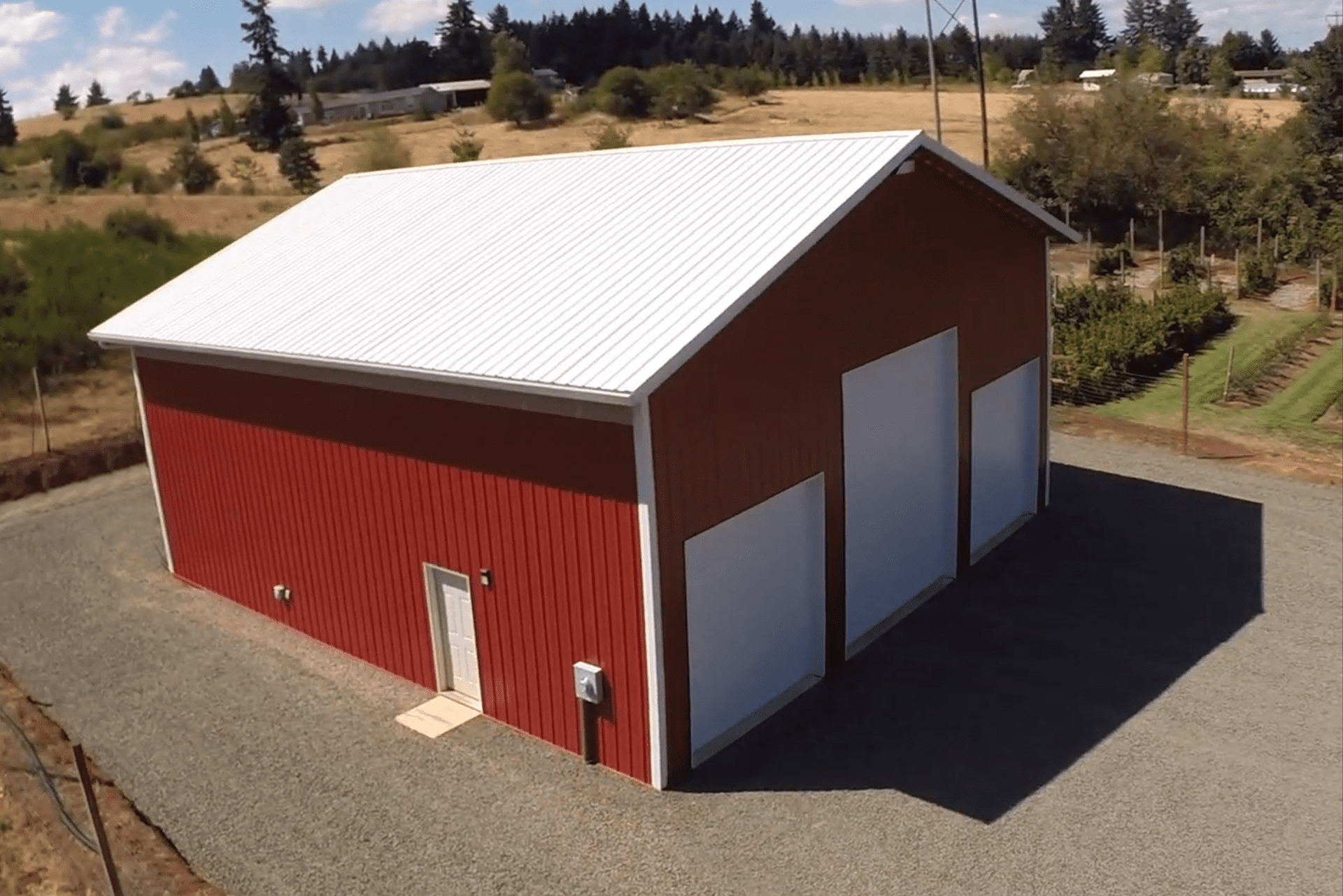

T-3™ Is Installed on the Roof and Siding of This Pole Barn:

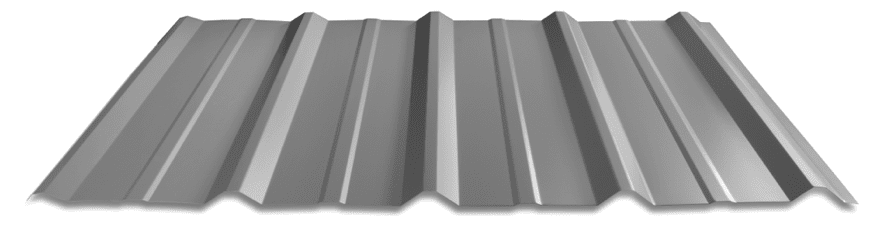

T-3™ Panel is a light gauge exposed fastener panel with 3/4″ high ribs, 9″ on center, with a 36″ net coverage. This is the roof and wall panel of choice for the Pacific Northwest Region.

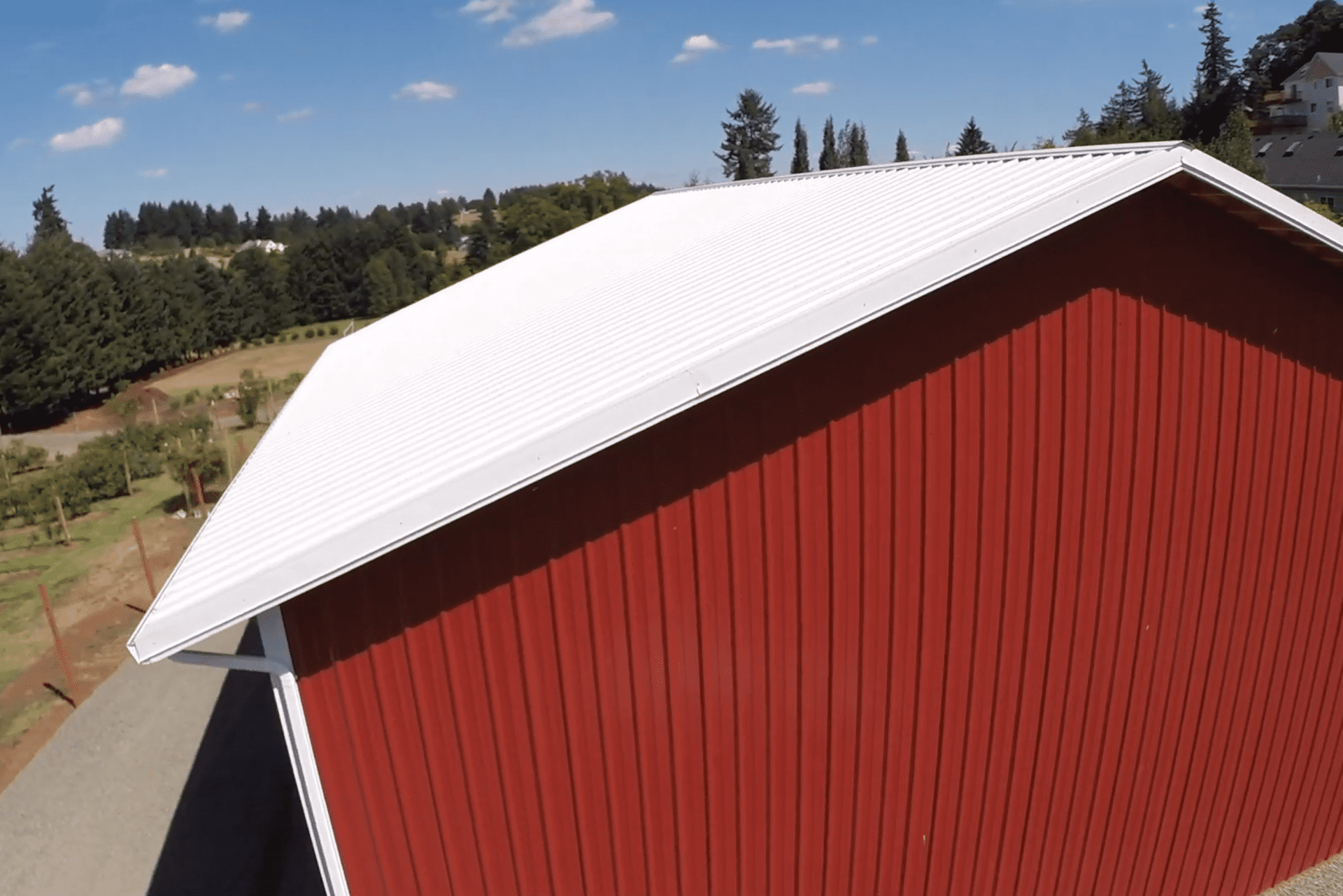

Roof & Siding: T-3™ | Glacier White & Tile Red

Features & Benefits

29, 26, 24 and 22 Tru-Gauge™ and .032″ Aluminum and Rusteel Plus™
3:12 minimum pitch recommended when installed with butyl sealant
Custom lenghts 1′ to 45′ (for longer length panels, please inquire)
Long length flashings available up to 20’11”
Standard trim, custom trim and accessory packages available
Color matched neoprene washered screws
Roof and vertical or horizontal wall application
Fiberglass & Polycarbonate panels available to match profile
Manufactured in Salem OR
OverEZee™ Retro-fit systems available

Material Specifications

26 Tru-Gauge™ ArmorTech™ Painted Steel
24 and 22 Tru-Gauge™ Kynar 500® Painted Steel
.032″ Kynar 500® Painted Aluminum
24 Tru-Gauge™ G-90 Galvanized or AZ-50
24 and 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 (no finish warranty — 25 yr. perforation warranty)
G-90 Galvanized or AZ-50
.040″ Kynar 500® Painted Aluminum (please inquire)
24 Tru-Gauge™ Bonderized
22 gauge Rusteel Plus™ (A606)
(no finish warranty — no perforation warranty)

Testing

UL 790 Class A (ASTM E108) – Fire rated
UL 2218 Class 4 – Impact (hail) rated
ASTM E1680 – Air infiltration (roof)
ASTM E1646 – Water infiltration (roof)
ASTM E331 – Water infiltration (wall)
ASTM E283 – Air infiltration (wall)
ASTM A653/A924 – G90 Galvanized
ASTM A792 – Zincalume/Galvalume AZ-50/55

Finishes

23 Standard ArmorTech™ colors
ArmorTech™ Paint System – excellent exterior durability
21 Standard Kynar 500® Colors, 5 metallics, and 3 specialized colors
Vintage® has a color range that can vary from batch-to-batch and have directional variations
- For more information: click here
Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
- For more information: click here
Kynar 500® Paint System – the ultimate in exterior durability
“Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
20 and 30 year commercial paint warranty’s: Contact TMP for warranty specifications
Superior quality, two coat SMP resin system at 1 mil. thickness
40-year residential paint warranty
- fading
- chalking
- chipping
- cracking
- peeling
