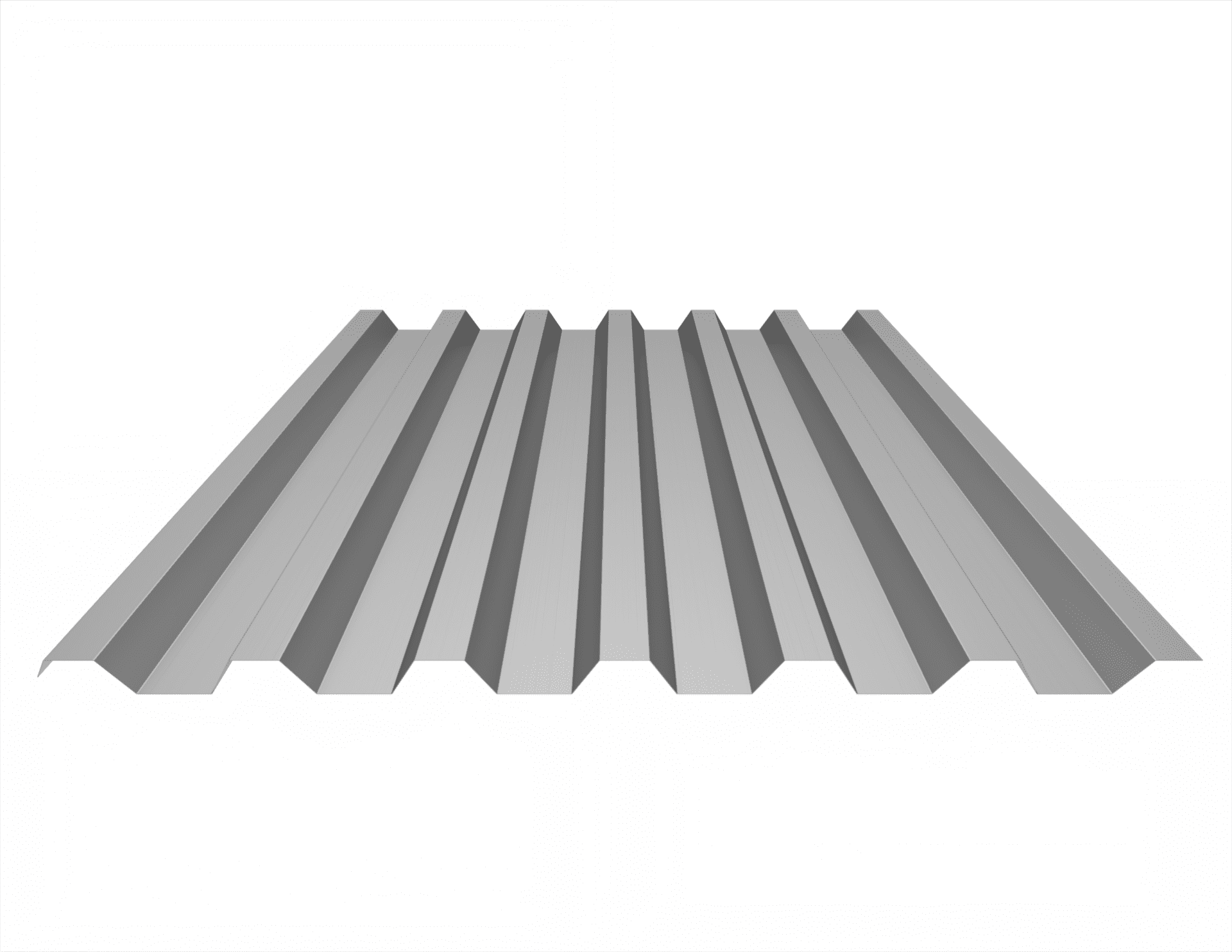

TMP 1.5-6-36

Features & Benefits

24 & 22 Tru-Gauge™ Kynar 500® Painted Steel
.032″ Kynar 500® Painted Aluminum
24 Tru-Gauge™ G-90 Galvanized or AZ-50
24 & 22 Tru-Gauge™ bare Zincalume® Plus AZ-55 Per ASTM A-792 (no finish warranty – 25 year perforation warranty)
.040″ Kynar 500® Painted Aluminum (inquire)
24 Tru-Gauge™ Bonderized
22 gauge Rusteel Plus™ (A606)
Custom 20 & 18 Tru-Gauge™ and .050″ and .063″ Aluminum (please inquire)
16 OZ & 20 OZ Real Copper
Kynar 500® and substrate testing data available

ASTM E1680 – Air infiltration (roof)
ASTM E1646 – Water infiltration (roof)
ASTM E1592 – Structural uniform static air pressure* (coming 2023 siding only)
ASTM E331 – Water infiltration (wall)
ASTM E283 – Air infiltration (wall)
ASTM A653/A924 – G90 Galvanized
ASTM A792 – Zincalume/Galvalume AZ-50/55
ASTM B209 – Aluminum Substrate

21 Standard Kynar® Colors, 5 Metallic Colors and 3 Specialized Colors
Vintage® has a color range that can vary from batch-to-batch and have directional variations
- For more information: click here
Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
- For more information: click here
Kynar 500® Paint System – the ultimate in exterior durability and color retention
“Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
21 Standared ArmorTech™ Colors, Zincalume® Plus and Galvanized
ArmorTech™ Paint System – excellent exterior durability
40-year residential paint warranty
