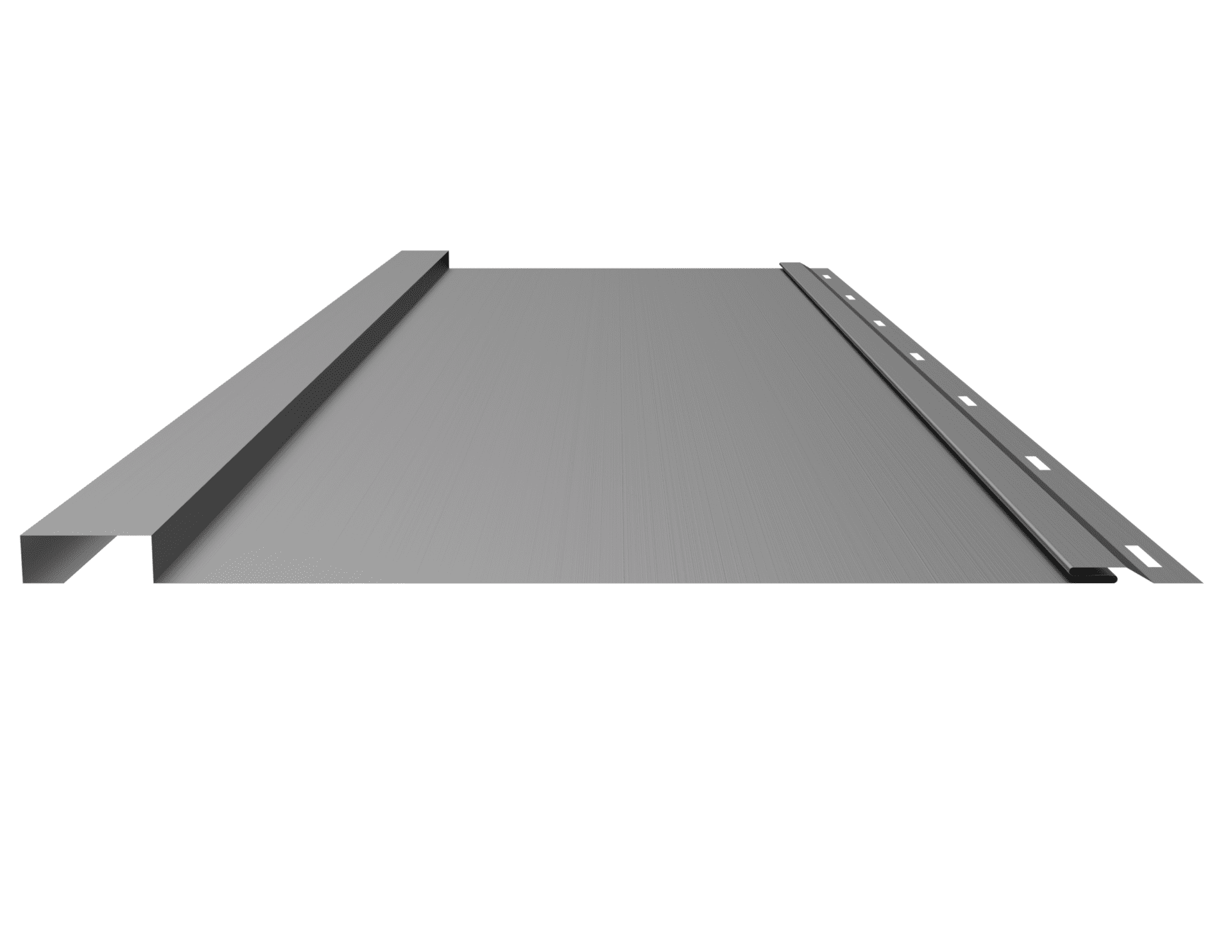

Board & Batten
Features & Benefits
- 12″ or 16″ panel coverage
- 26, 24, & 22 Tru-Gauge™ and .032″ Aluminum
- 3/4″ deep panel
- 2″ wide batten
- Slotted screw flange — allows for expansion and contraction
- 2′ to 35′ panel lengths (for longer length panels, please inquire)
- Vertical or horizontal wall application
- Acceptable for use as a soffit panel
- 1″ Slot on screw flange – allows 1/2″ movement in each direction
Material Specifications
- 26 Tru-Gauge™ Kynar 500® Painted Steel Galvanized G-90 or Zincalume® AZ-50
- 24 Tru-Gauge™ Kynar 500® Painted Steel Galvanized G-90 or Zincalume® AZ-50
- 24 & 22 Tru-Gauge™ Zincalume® Plus (no finish warranty – 25 yr. perforation warranty)
- 22 Tru-Gauge™ Kynar 500® Painted Steel Galvanized G-90 or Zincalume® AZ-50
- .032″ Aluminum Kynar 500®
- 16 and 20 ounce Copper
- Kynar 500® and substrate testing data available
- .8mm and 1.0mm True Zinc on special request (please inquire)
Testing
- ASTM A653/A924 – G90 Galvanized
- ASTM A792 – Zincalume/Galvalume AZ-50/55
- ASTM B209 – Aluminum Substrate
Finishes
- 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
- Vintage® has a color range that can vary from batch-to-batch and have directional variations
- Kynar 500® Paint System-the ultimate in exterior durability and color retention
- “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
- Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
- 40-year residential paint warranty
- 20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
