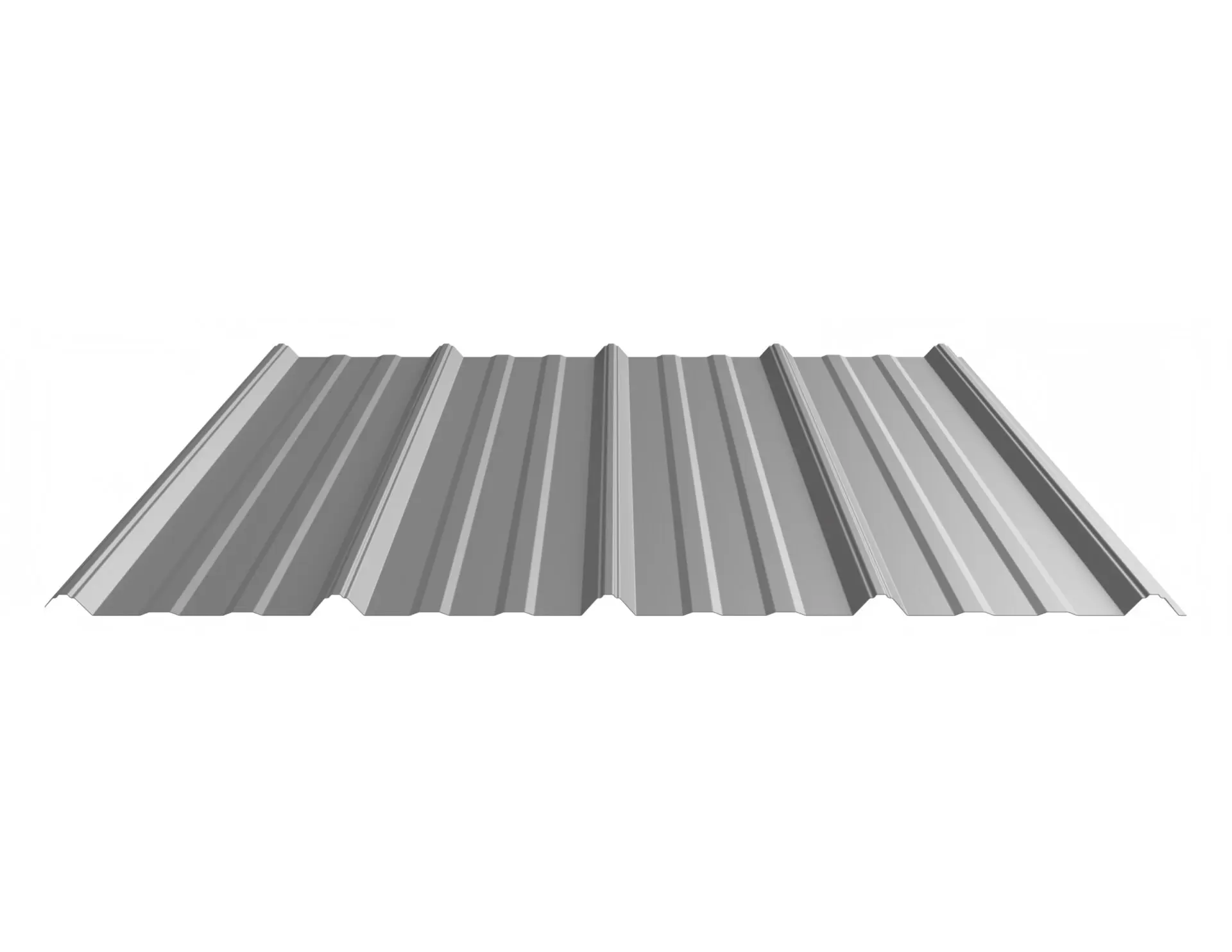

Rolled Rib™

Rolled Rib™ is a low profile, exposed fastener panel with a 36 inch coverage. Rolled Rib™ is commonly used in both roof and wall applications. Throughout the inland empire, you can see rolled rib used in agricultural, commercial, residential and industrial applications. Rolled Rib™ is available in 29 gauge steel, 26 GA. Available on request.

Features & Benefits

  • 29 Tru-Gauge™ (inquire about 26 gauge)
  • 1:12 minimum pitch recommended when installed with butyl sealant
  • Custom lengths 1′ to 45′ (for longer length panels, please inquire)
  • Long length flashings available up to 20’11”
  • Standard trim, custom trim and accessory packages available
  • Color matched neoprene washered screws
  • Roof and vertical or horizontal wall application
  • Perforated options available (please inquire)
  • Fiberglass & Polycarbonate panels available to match profile
  • Manufactured in Spokane WA
  • OverEZee™ retro-fit systems available

Material Specifications

  • 29 gauge ArmorTech™ SMP Painted Steel
    G-90 Galvanized or AZ-50
  • 29 gauge bare Zincalume® Plus AZ-55
    (No finish warranty — 25 yr. perforation warranty)
  • 29 gauge bare G-90 Galvanized
    (No finish warranty — no perforation warranty)

Testing

  • UL 790 Class A (ASTM E108) – Fire rated
  • UL 2218 Class 4 – Impact (hail) rated
  • ASTM E1680 – Air infiltration (roof)
  • ASTM E1646 – Water infiltration (roof)
  • ASTM E1592 – Negative structural uniform static air pressure
  • ASTM E330 – Positive structural uniform static air pressure
  • ASTM E331 – Water infiltration (wall)
  • ASTM E283 – Air infiltration (wall)
  • ASTM A653/A924 – G90 Galvanized
  • ASTM A792 – Zincalume/Galvalume AZ-50/55

Finishes

  • ArmorTech™ Paint System – excellent in exterior durability
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two coat SMP resin system at 1 mil. thickness
  • 40-year residential paint warranty
    • fading
    • chalking
    • chipping
    • cracking
    • peeling
