SW-16

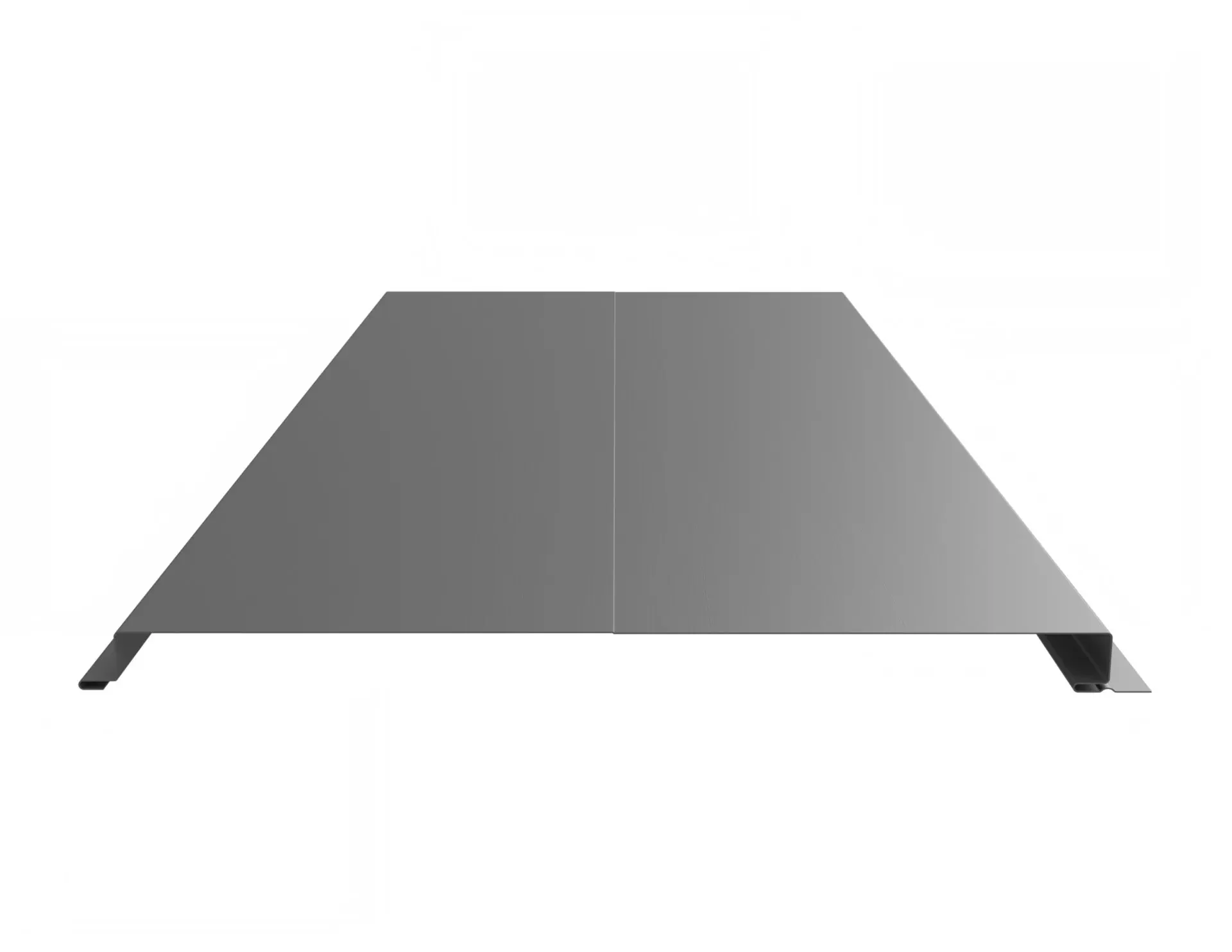

SW-16 is a concealed fastener soffit and wall panel. It is a flush panel that gives a uniform, smooth and sleek appearance. The panel has a center pencil rib with a vented option for soffit application. On-site roll forming is available. SW-16 panels are made from high-tensile steel for superior load capacity. All painted materials have a resistant metallic finish under the primer and topcoat.

Features & Benefits

Center pencil rib
Vented option for soffit application
No visible fasteners
On-site roll forming available
Made from high-tensile steel for superior load capacity
Paint materials have corrosion resistant metallic finish under the primer and topcoat
ArmorTech™ SMP Pain system with a 40 year written paint warranty
Coverage: 16”
Major Rib Height: 1”
Major Rib Spacing: 16” o.c.
Major Rib Configuration: Concealed, Interlocking
Fastening: Concealed, screws or nails
Thickness: 26 ga., 24 ga.*
Base Metal: 80 ksi steel
Options Vented (5.1 sq in/sf), Non-Vented, Striated or Flat Pan

Material Specifications

26 gauge ArmorTech™ SMP Painted Steel
G-90 Galvanized or AZ-50
26 gauge bare Zincalume® Plus AZ-55
(No finsih warranty — 25 yr. perforation warranty)
26 gauge bare G-90 Galvanized
(No finish warranty — no perforation warranty)
24 gauge Kynar 500® Painted Steel
(please inquire)

*Oil canning may occur and in not reason for rejection

Finishes

ArmorTech™ Paint System – excellent in exterior durability
“Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
Superior quality, two coat SMP resin system at 1 mil. thickness
40-year residential paint warranty
- fading
- chalking
- chipping
- cracking
- peeling
