SmoothWall™

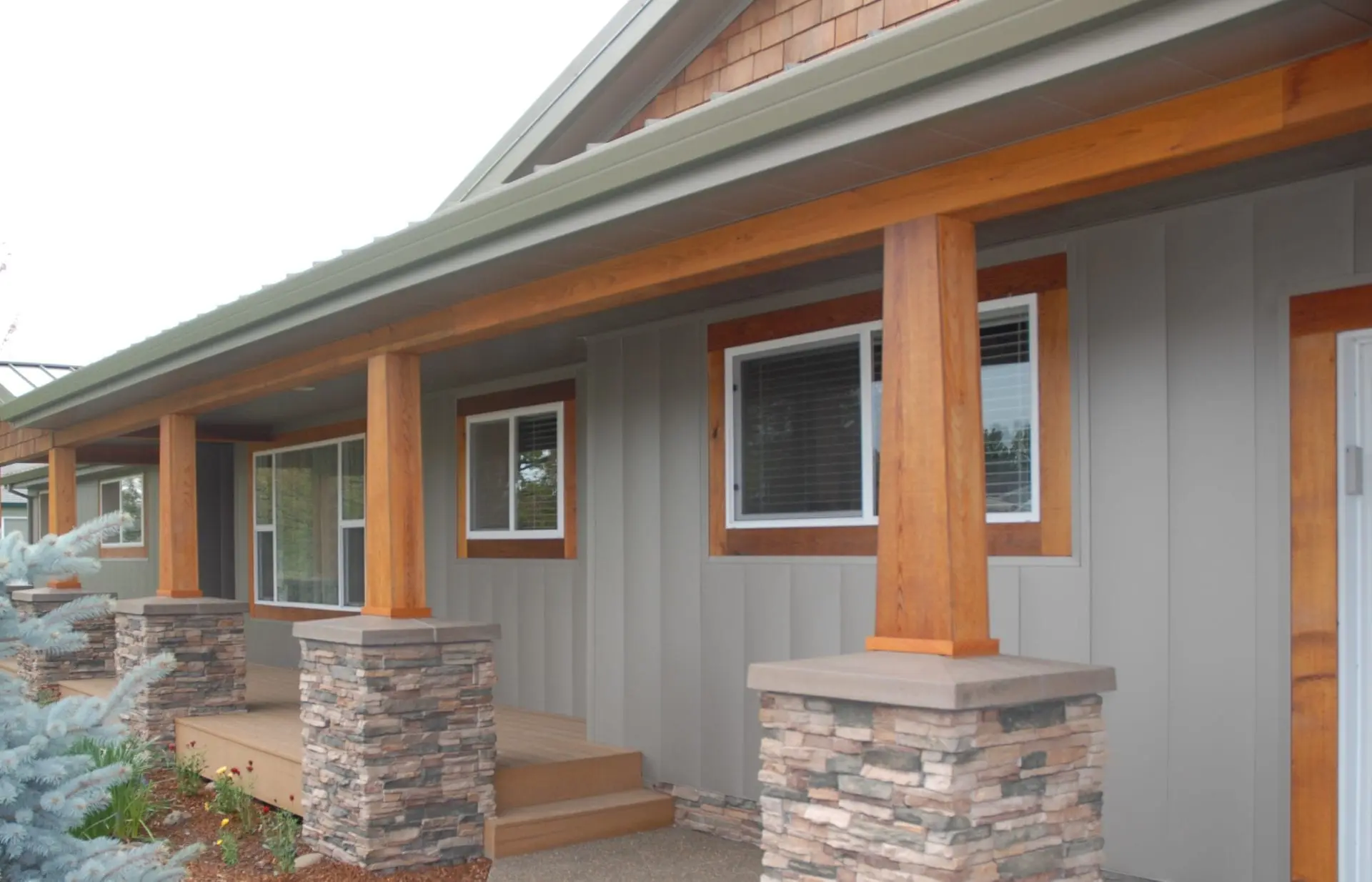

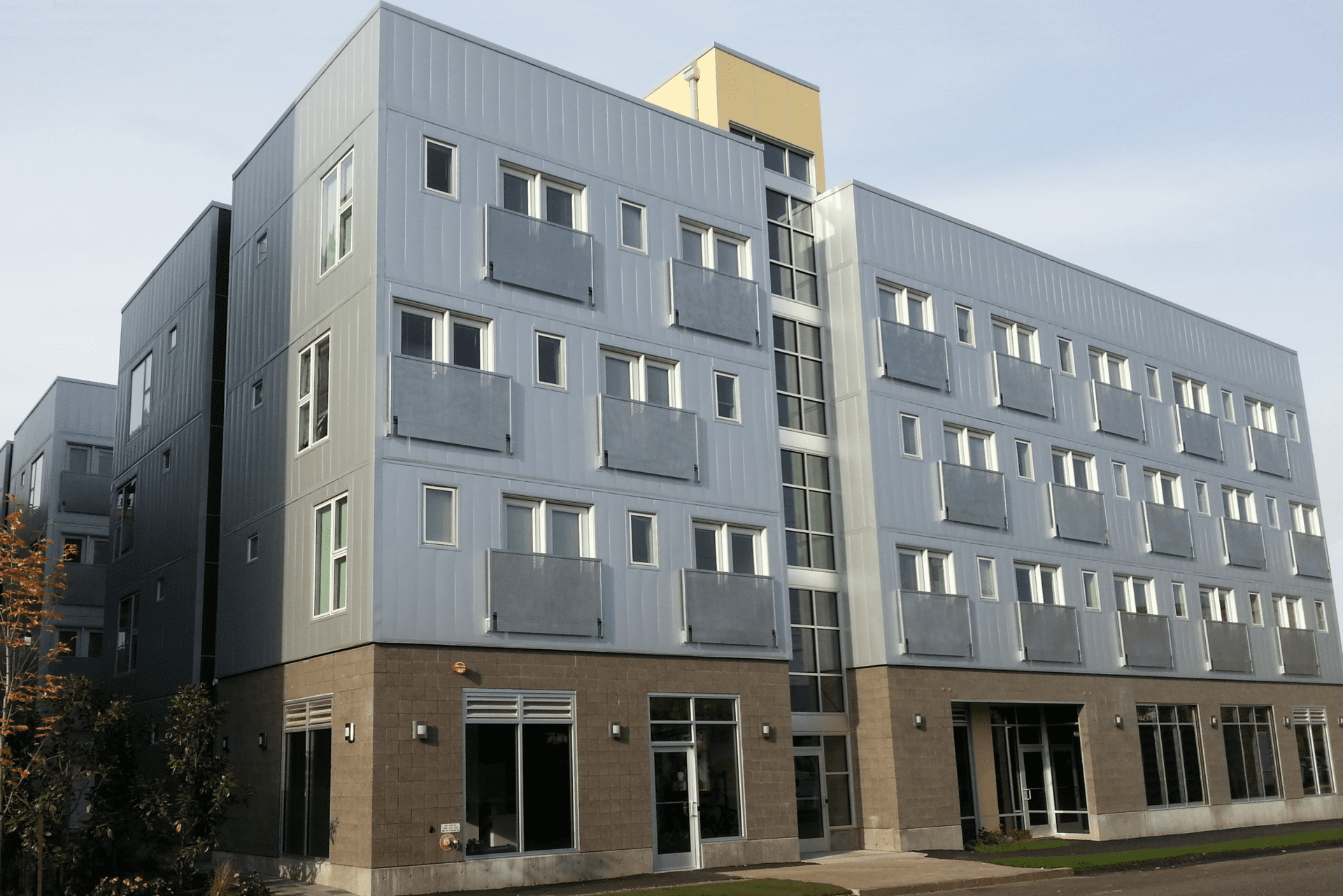

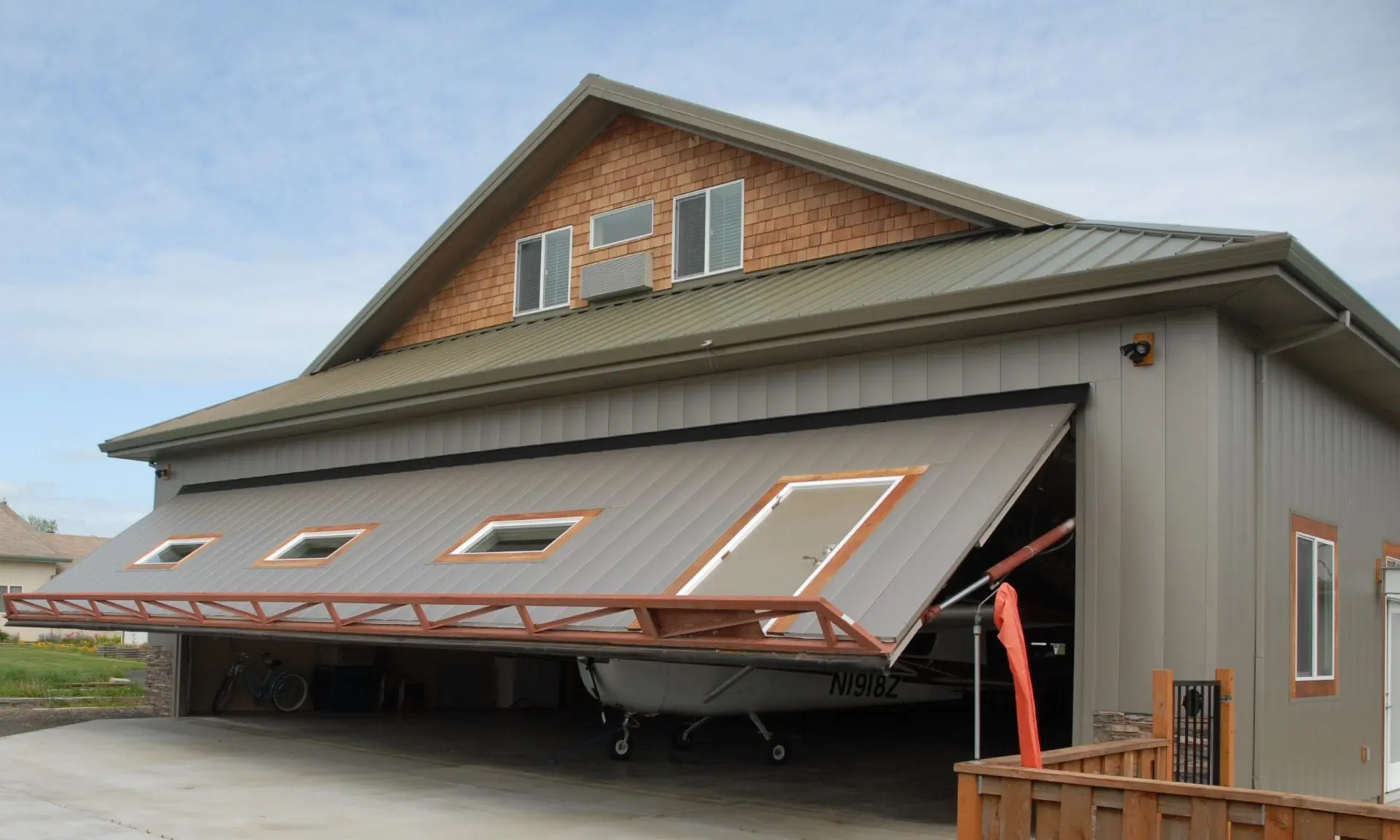

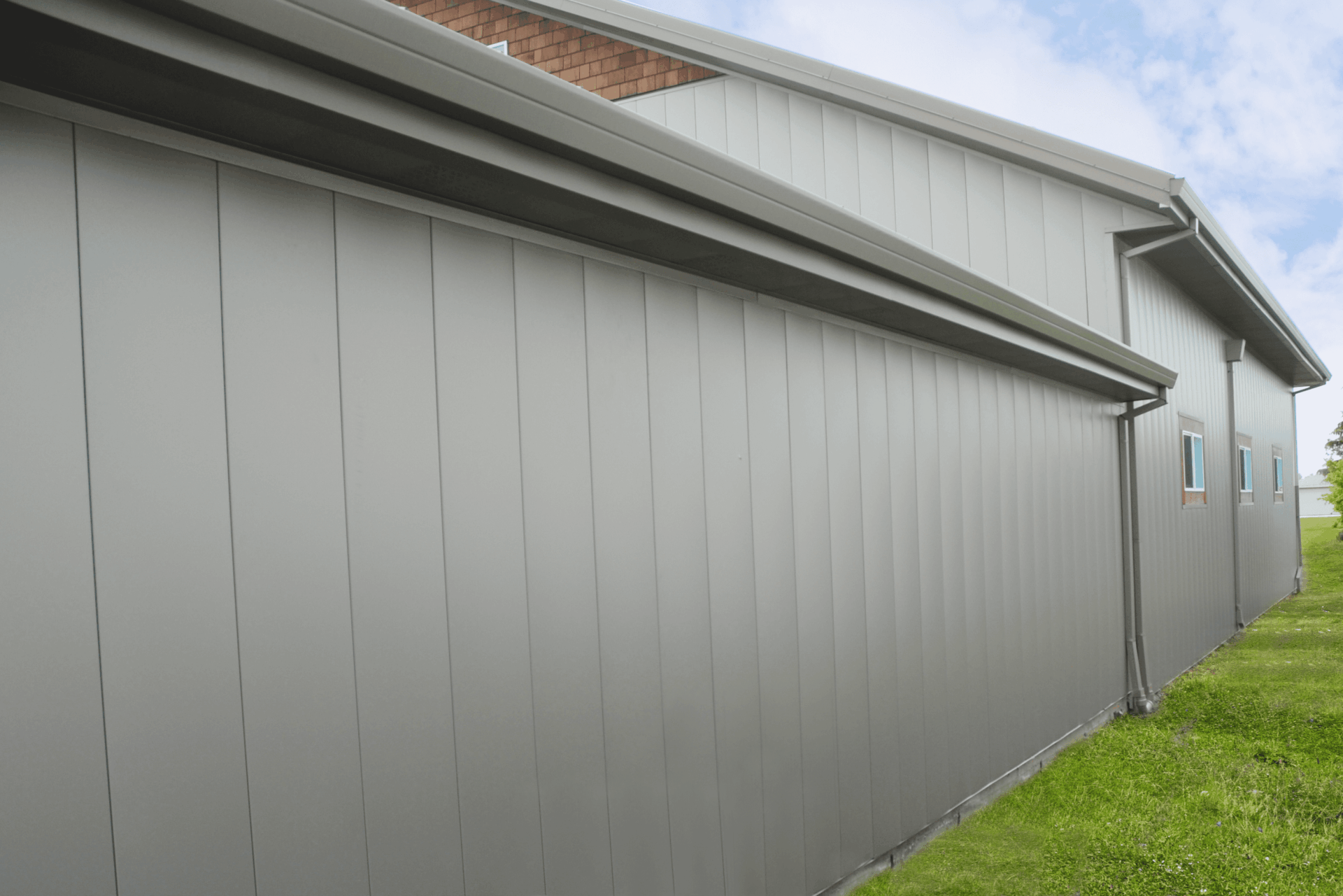

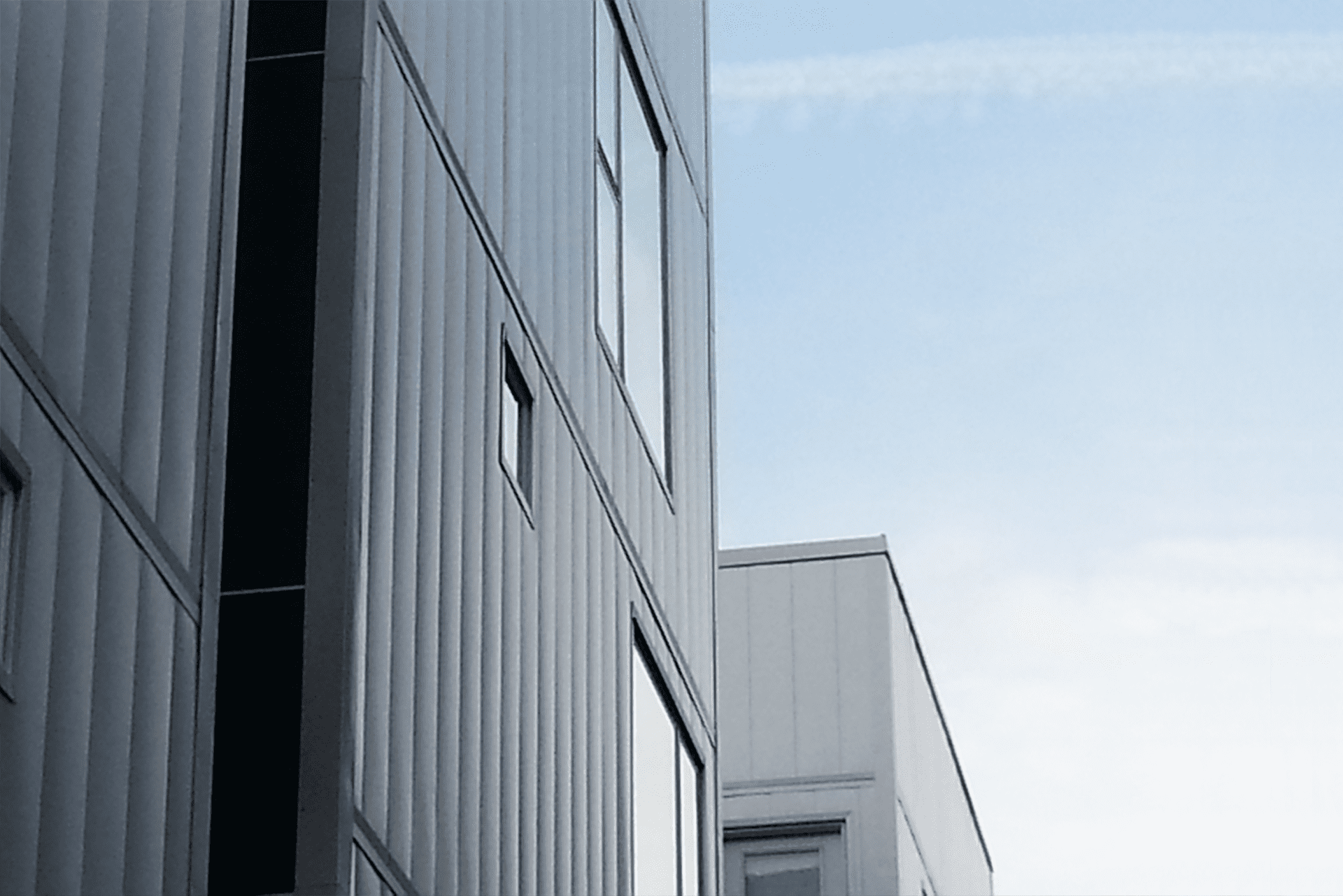

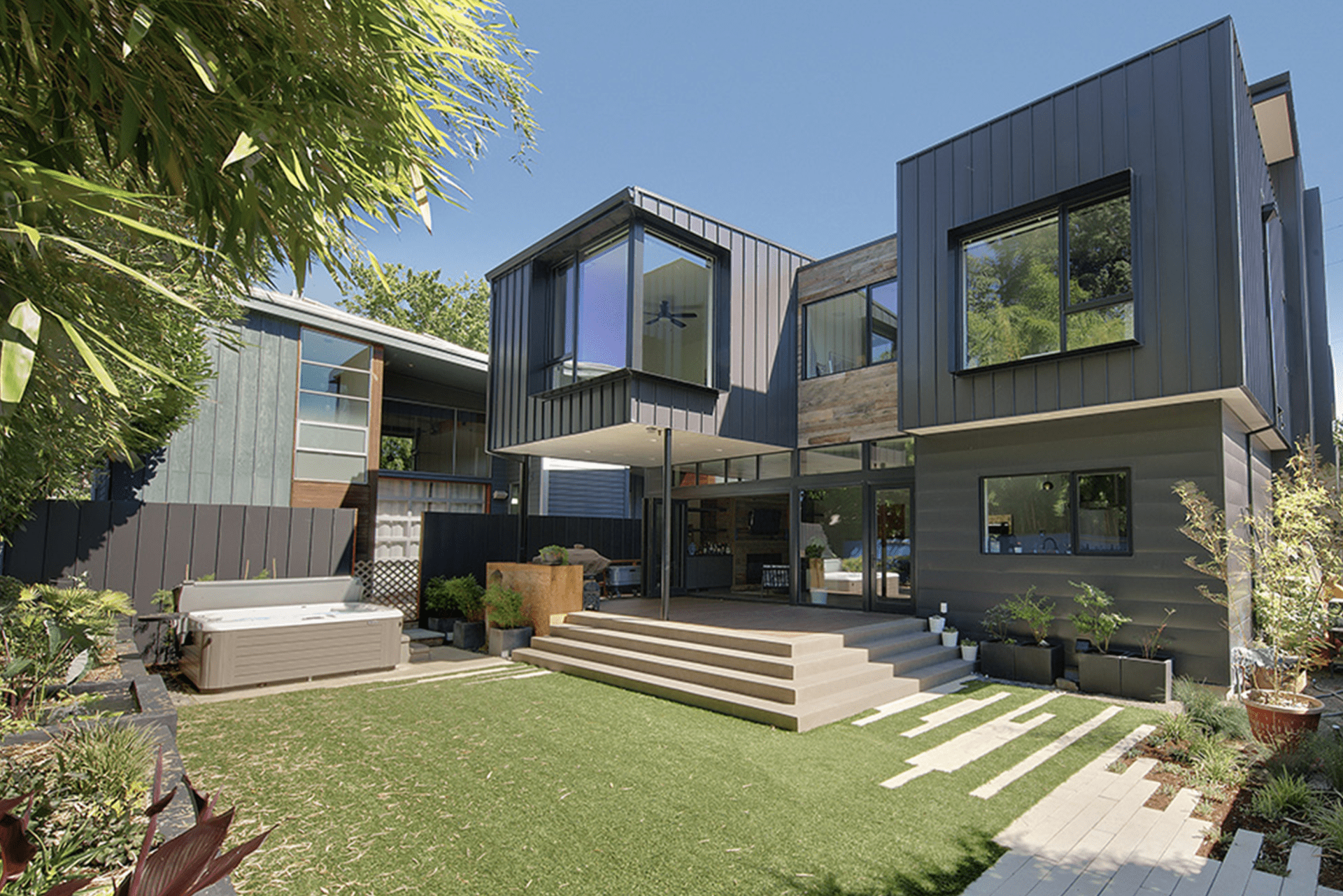

SmoothWall™ will give your commercial or residential projects a clean monolithic appearance. With the different panel styles available, your designs will come alive.

ICC-ESR #5045 with CBC-CRC Supplement

Features & Benefits

12″ coverage panel
24 & 22 Tru-Gauge™
.032″ & .040″ Aluminum
20 and 18 gauge, .050″ and .063″ Aluminum available (please inquire)
Custom lengths 3′ to 35′ (inquire for longer or shorter lengths)
2′ Shortcut capability (fee applicable)
Concealed fasteners: fasteners cannot leak
Versatile in wall and soffit applications
Unique smooth wall appearance

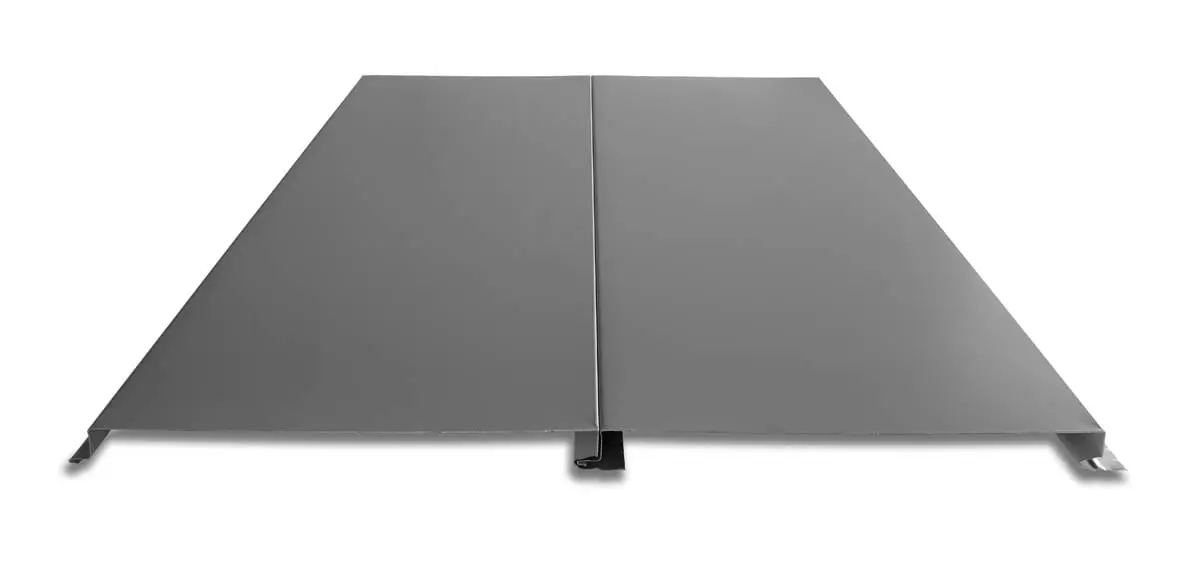

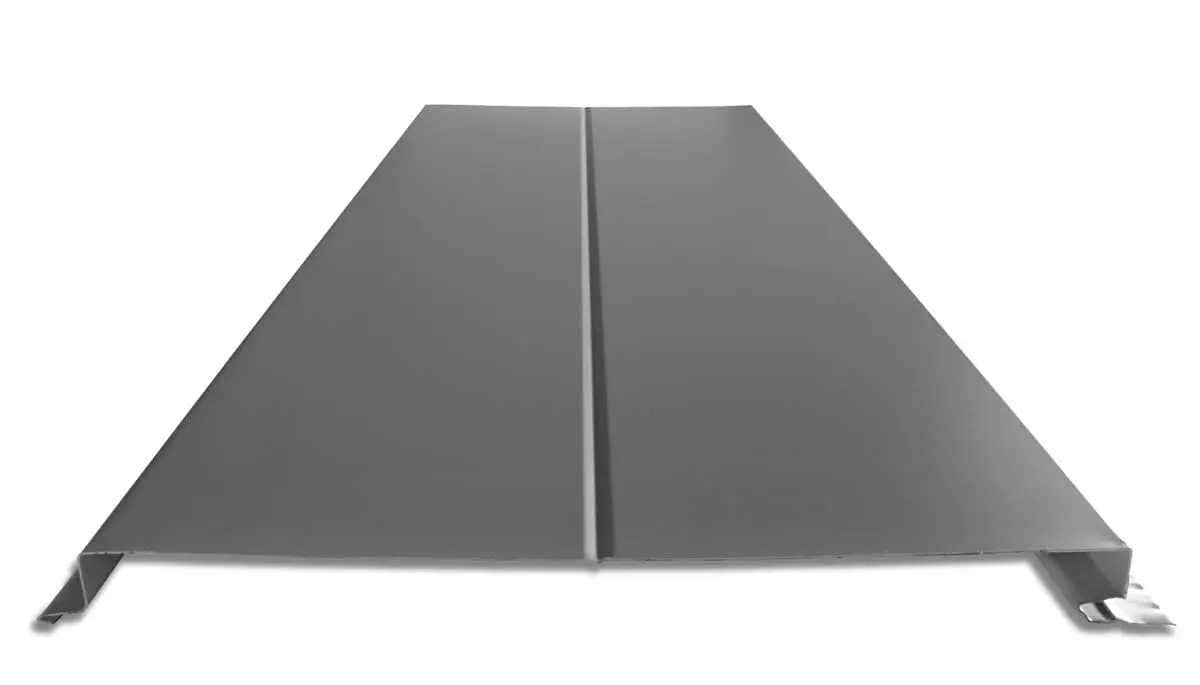

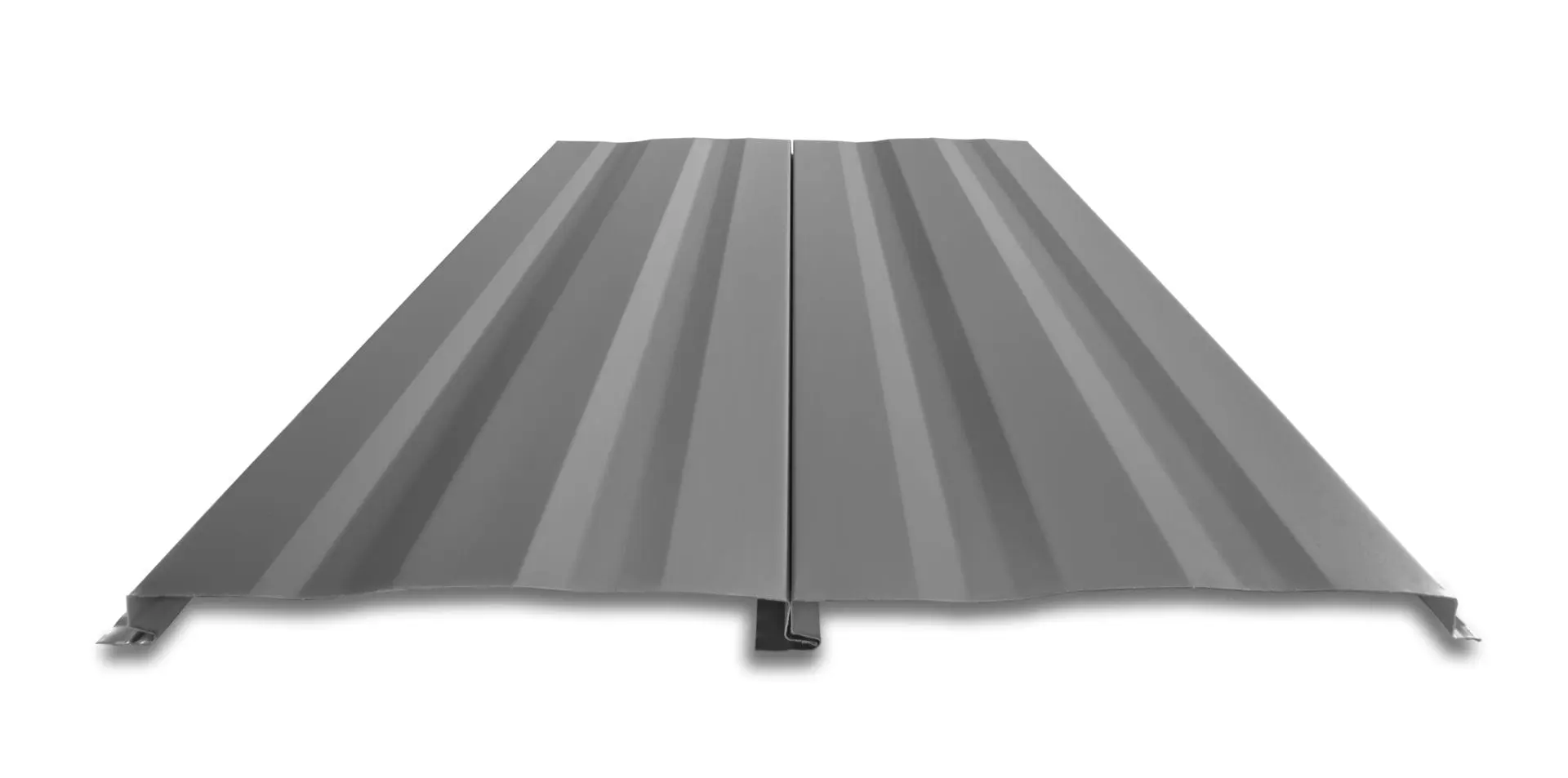

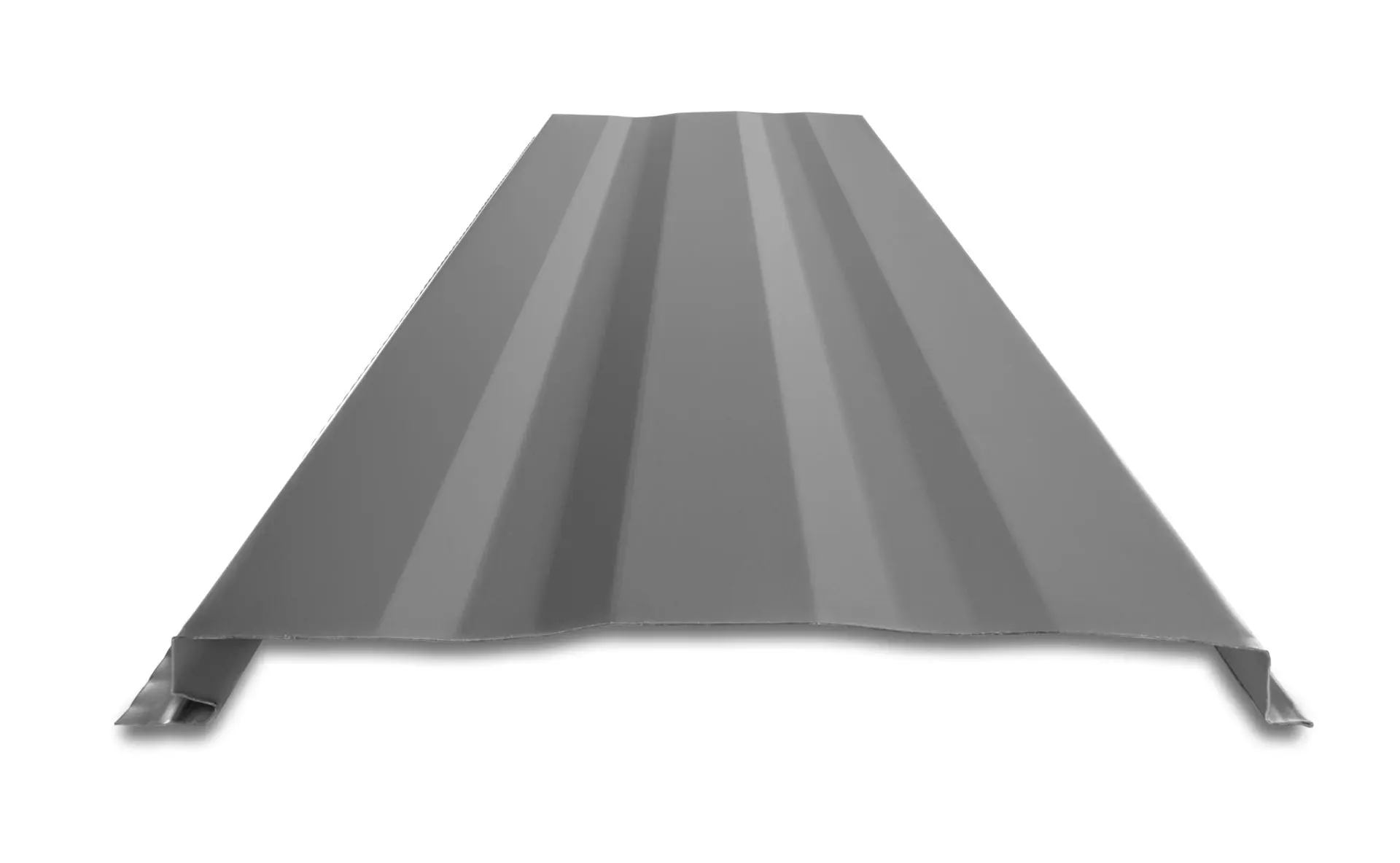

Panel options: Striations, Single V-Groove, Double V-Groove, and Flat Pan (only available in 24 & 22 gauge, and .032″ & .040″ Aluminum)

Material Specifications

24 & 22 gauge Kynar 500® Painted Steel
.032″ Kynar 500® Painted Aluminum
24 Tru-Gauge™ G-90 Galvanized or AZ-50
24 & 22 gauge Zincalume® Plus AZ-55 (no finish warranty – 25 year perforation warranty)
24 Tru-Gauge™ Bonderized
22 gauge Rusteel Plus™ (A606)
16 OZ & 20 OZ Real Copper

Testing

ASTM E1592 – Structural uniform static air pressure
ASTM E1680 – Air infiltration (roof)
ASTM E283 – Air infiltration (wall)
ASTM E1646 – Water infiltration (roof)
ASTM E331 – Water infiltration (wall)

Finishes

Kynar 500® 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
Vintage® has a color range that can vary from batch-to-batch and have directional variations
- For more information: click here
Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
- For more information: click here
“Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
40-year residential paint warranty
20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
