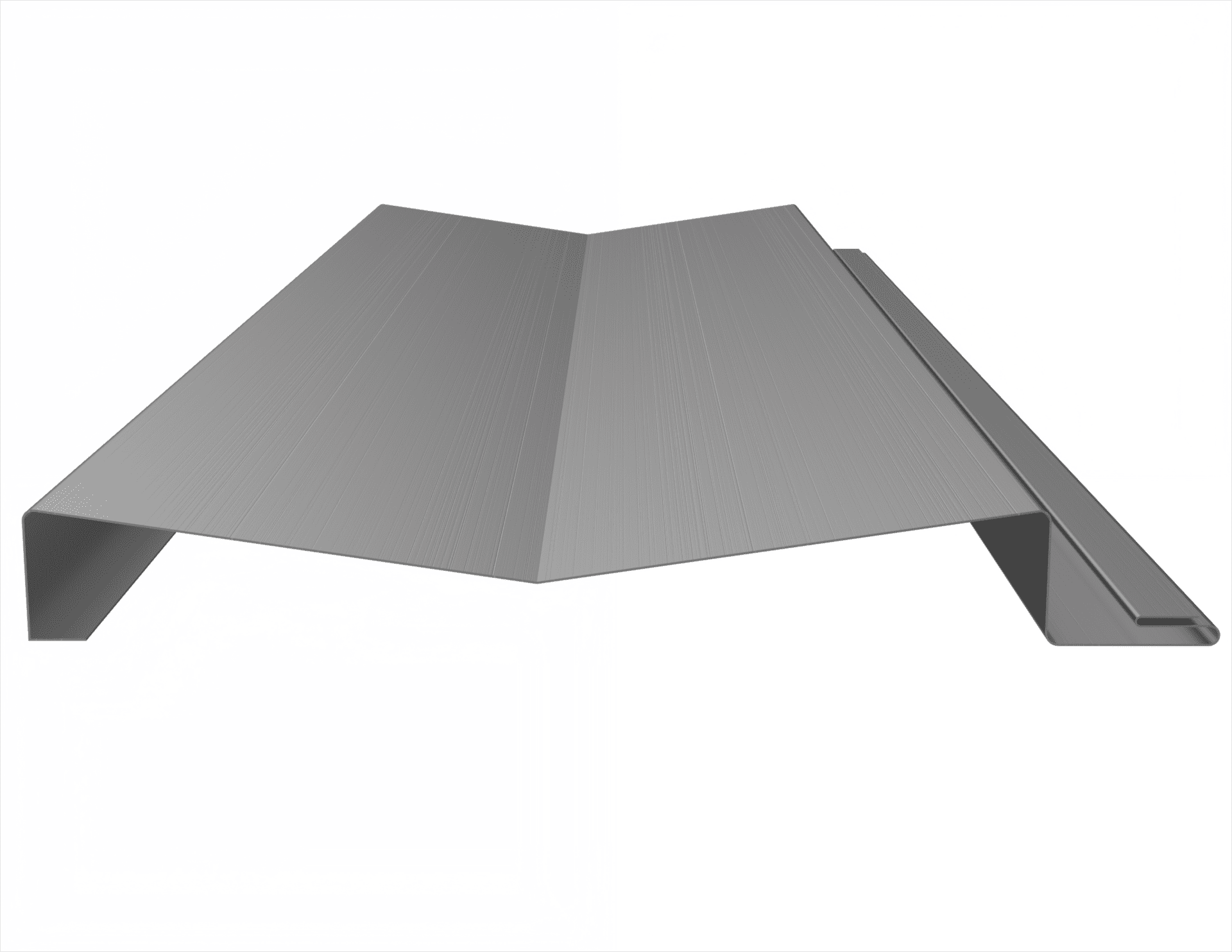

Cascade 9

Features & Benefits

12″ panel coverage
24 and 22 Tru-Gauge™ and .032” and .040 Aluminum.
Custom 20 & 18 Tru-Gauge™ and .050” and .063” Aluminum. These require the use of high performance clip. (please inquire)
2′ to 20’10” panel lengths
Concealed fasteners: fasteners cannot leak
High wind clips are available
Versatile in wall and soffit application

21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
Vintage® has a color range that can vary from batch-to-batch and have directional variations
- For more information: click here
Kynar 500® Paint System-the ultimate in exterior durability and color retention
“Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
40-year residential paint warranty
20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
“Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection
