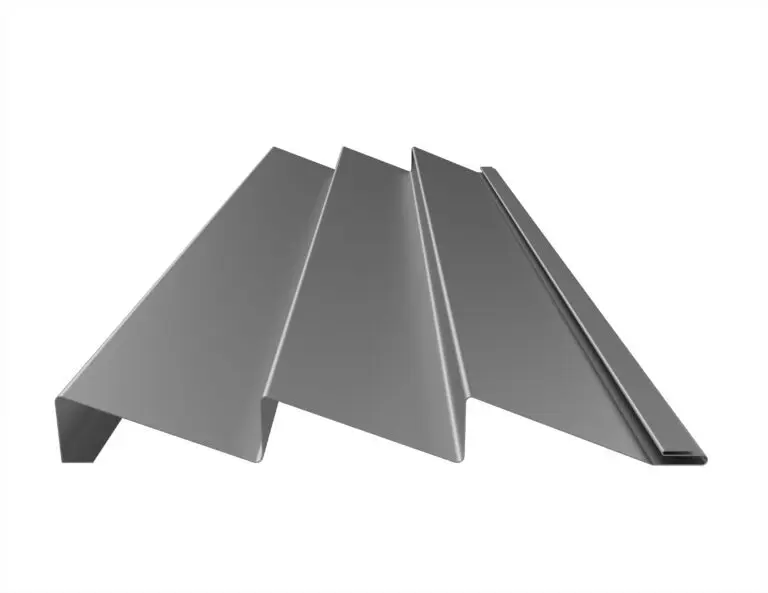

Cascade 3
Features & Benefits
- 12″ panel coverage
- 24 and 22 Tru-Gauge™ and .032” and .040 Aluminum.
- Custom 20 & 18 Tru-Gauge™ and .050” and .063” Aluminum. These require the use of high performance clip. (please inquire)
- 2′ to 20’10” panel lengths
- Concealed fasteners: fasteners cannot leak
- High wind clips are available
- Versatile in wall and soffit application
Material Specifications
- 22 & 24 Tru-Gauge™ Kynar 500® Painted Steel
- .032″ Kynar 500® Painted Aluminum
- 24 Tru-Gauge™ G-90 Galvanized or AZ-50
- 22 & 24 Tru-Gauge™ bare Zincalume® Plus AZ-55
- .040″ Kynar 500® Painted Aluminum (please inquire)
- 24 Tru-Gauge™ Bonderized
- 22 gauge Rusteel Plus™ (A606)
- Custom 20 & 18 Tru-Gauge™ and .050″ and .063″ Aluminum (please inquire)
- 16 OZ & 20 OZ Real Copper
- Kynar 500® and substrate testing data available
Testing
- ASTM E331 – Water infiltration (wall)
- ASTM E283 – Air infiltration (wall)
- ASTM E1592 – Negative structural uniform static air pressure
- ASTM E1680 – Air infiltration (roof)
- ASTM E1646 – Water infiltration (roof)
Finishes
- 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
- Vintage® has a color range that can vary from batch-to-batch and have directional variations
- Kynar 500® Paint System-the ultimate in exterior durability and color retention
- “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
- Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
- 40-year residential paint warranty
- 20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
- “Oil Canning” is an inherent characteristic of roof and wall products, and not a defect, which is not a cause for panel rejection
