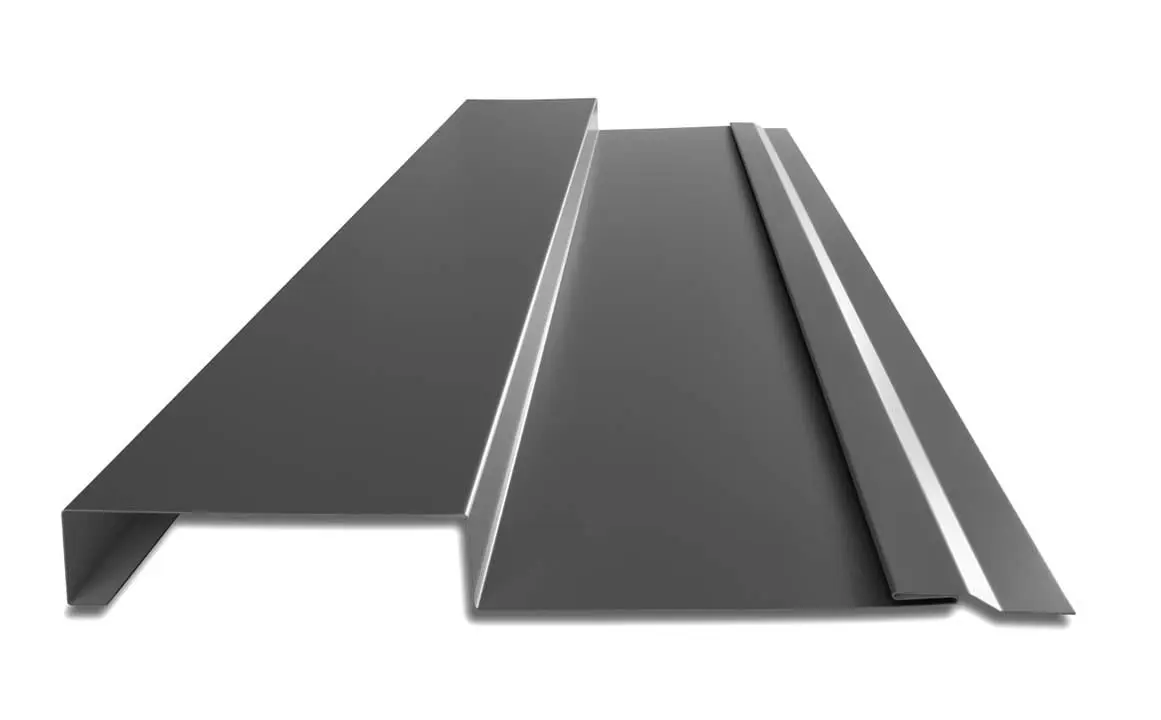

Contour Reveal™

Features & Benefits

  • 12″ panel coverage
  • 24 and 22 Tru-Gauge™ and .032″
    Screw Flange and Clip attachment available
  • Custom 20 & 18 Tru-Gauge™ and .050 and .060 Aluminum.
    These require the use of high performance clip (please inquire)
  • 1″ and 1-1/2″ deep panel
  • 2′ to 20’10” panel lengths
  • Custom profile available
  • Vertical or Horizontal Wall Application
  • Acceptable for use as a soffit panel
  • Interchangeable panel widths and configurations
  • Perforated options available (please inquire)
  • Manufactured in Salem OR & Riverside CA

Material Specifications

  • 24 gauge Kynar 500® Painted Steel .0236″ (thickness prior to painting) Galvanized G-90 or Zincalume® AZ-50 Per ASTM A-792
  • 22 & 24 gauge Zincalume® Plus AZ-55 Per ASTM A-792 (no finish warranty  – 25 year perforation warranty)
  • 22 gauge Kynar 500® Painted Steel .029″ (thickness prior to painting) Galvanized G-90 or Zincalume® AZ-50 Per ASTM A-792: Select colors, please inquire for details
  • .032″ Kynar 500® Painted Aluminum: Select colors, please inquire for details
  • 16 and 20 ounce Copper

Testing

  • ASTM E283, ASTM E331, ASTM E1680, ASTM E1646, ASTM E1592, ASTM A653/A924, ASTM A792 and ASTM B209

Finishes

  • 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
  • Vintage® has a color range that can vary from batch-to-batch and have directional variations
  • Kynar 500® Paint System-the ultimate in exterior durability and color retention
  • “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
