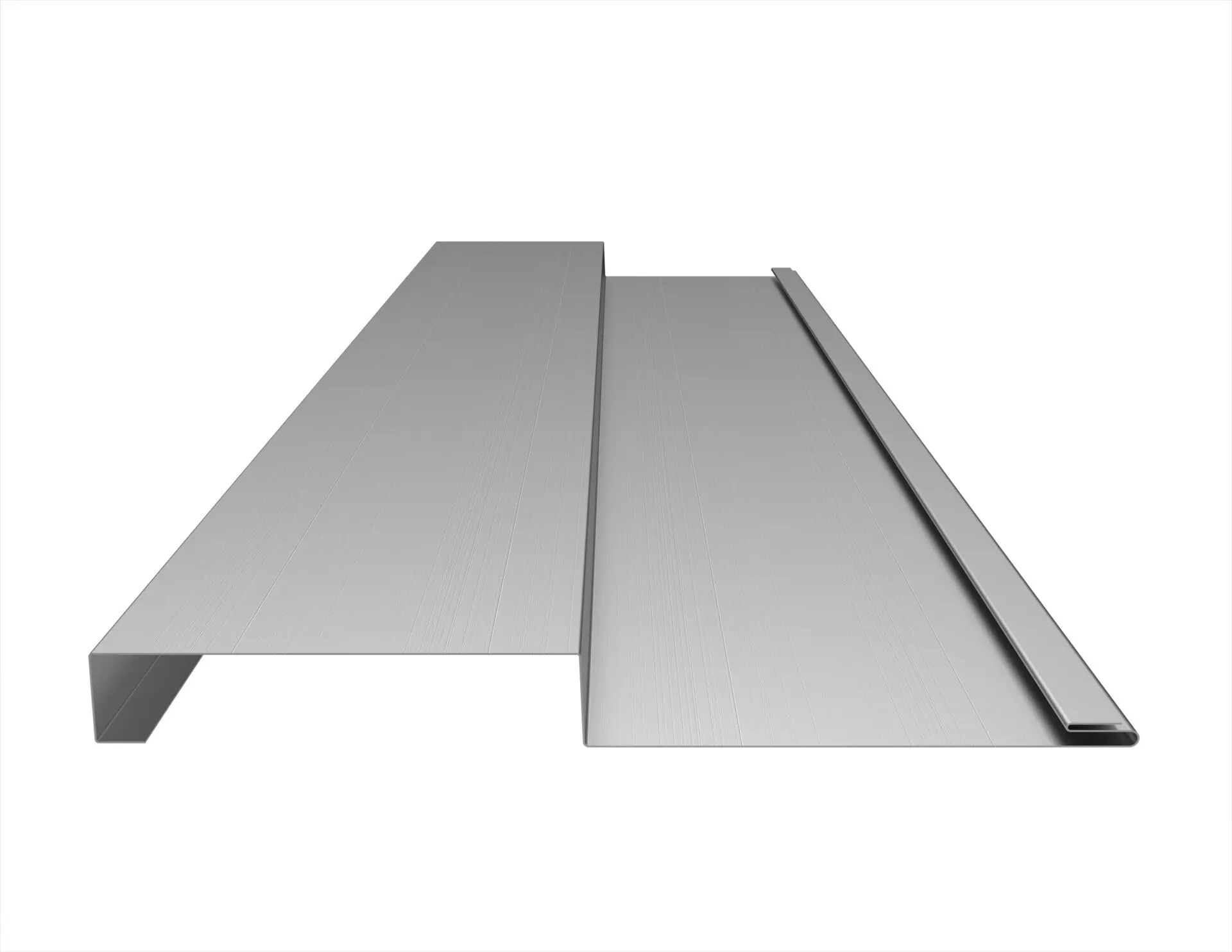

C-7

Features & Benefits

12” panel coverage
24 and 22 Tru-Gauge™ and .032” and .040 Aluminum. Screw Flange and Clip attachment available
Custom 20 & 18 Tru-Gauge™ and .050” and .063” Aluminum. These require the use of high performance clip. (please inquire)
2’ to 20’10” panel lengths
Custom profiles available
Vertical or Horizontal Wall Application
Acceptable for use as a soffit panel
Interchangeable panel widths and configurations
Perforated options available (please inquire)

24 gauge Kynar 500® Painted Steel Galvanized G-90 or AZ-50 Zincalume®
22 gauge Kynar 500® Painted Steel Galvanized G-90 or AZ-50 Zincalume®
24 & 22 gauge Zincalume® Plus (No finish warranty – 25 yr. perforation warranty)
24 gauge and 22 gauge standard – 20 and 18 gauge on special request
.032 Aluminum Kynar 500®
22 gauge Rusteel Plus™ (A606)
16 and 20 oz. Copper
Kynar 500® and substrate testing data available (See website)
.8mm and 1.0mm True Zinc on special request (please inquire)
Heavier gauges available upon request – 20 gauge and 18 gauge steel; .040, .050 and .063 Aluminum (please inquire)

21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
Vintage® has a color range that can vary from batch-to-batch and have directional variations
Kynar 500® Paint System-the ultimate in exterior durability and color retention
“Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
40-year residential paint warranty
20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
